Archive for August, 2009

ColdHeat soldering iron

Monday, August 17th, 2009

Coldheat is an American company that develops and markets special soldering iron called ColdHeat. ColdHeat iron product was review at ePanorama.net eariler. The secret of that product is a proprietary graphite-like compound called Athalite. The tip of this apparatus is split into two sections that completes an electrical circuit when something of low resistance is placed across the tip; e.g. solder. With a current flowing, the resistance of both the solder and the tip produces heat that allows you to do soldering.

The original iron is powered by 4 ordinary AA (LR6) alkaline batteries. The device works by running a high current (by electronic standards) through the tip and there is considerable voltage on the tip as well. Howstuffworks ColdHeat article describes the soldering iron operation and Wikipedia also has some technical information.

I own one ColdHeat soldering iron. I have occasionally used that. That tool is practically useless for fine electronics circuit board soldering. It lacks temperature control and it is too easy to destroy sensitive electronics circuit with it. When not in contact with a joint the split tip has 6 volts, which is enough to cause lots of damage because a forward-biased p-n junction may be destroyed by less than 1V applied across it (unless current is limited to low value). There is also tiny transient voltage when the tool is applied or removed.

That tool is useful for occasional soldering of items that are not sensitive to the voltages and current the ColdHeat soldering iron generates. I have found that this soldering iron works quite well for soldering wires to some connectors. For example for soldering and repairing audio/video cables on the field. It is fast and easy when you just need to make few solder joints. When I need to make many solder joints, I prefer to use a temperature controlled normal soldering iron.

200px-cold_heat_soldering_iron_side_view

IE6 No More!

Thursday, August 13th, 2009

The topic of site support for IE6 has had a lot of discussion on the web recently. Enough is enough. IE6 is an ancient browser released in late 2001. Why would anyone run an eight-year old browser? Should sites continue to support it? What more can anyone do to get IE6 users to upgrade?

IE6 does not support many of the major innovations of the last 8 years. Yet it is still used by 15-25% of Internet users. IE No More website is run by a group of people who want to see IE 6 disappear as soon as possible. The reason is that IE 6 is one of the most difficult and frustrating things web designers have to deal with on a daily basis. The end users also suffer because the insecurity of that old browser compared to new competitors. IEBlog: Engineering POV: IE6 tells the reasons why some organizations and users are still stuck with the old version. But even this blog want people to upgrade to the latest version. Microsoft wants to see IE6 gone as much as anyone else, but the company isn’t going to make the decision for its users anytime soon. Microsoft says that is has committed to supporting the IE included with Windows for the lifespan of the product. On April 14, 2009, Microsoft retired Mainstream Support for Windows XP, and thus for Internet Explorer 6. That said, Microsoft is not planning to retire Extended Support for the operating system until April 8, 2014.

Of course some big Web sites aren’t waiting for Microsoft. Google’s Orkut (a social networking service popular in Brazil and India) and YouTube have started warning IE6 users that the browser will no longer be supported.

ie6nomore-logo

Your TV could be watching you

Wednesday, August 12th, 2009

Twice a year, tech companies descend on CableLabs’ Innovation Showcase to demo their wares for a group of cable operators. PrimeSense’s 3D sensing chip won the ops’ vote in an informal poll for best new product idea. This product lets digital devices see a 3-D view of the world. The device includes a sensor, which sees a user (including their complete surroundings), and a digital component, or “brain” which learns and understands user movement within those surroundings.
This system provides something similar to thermal images, showing how many people are in front of the TV. Do we really need cable and/or video service operators knowing this? This system can also track and react to user movements outside the computer.
shoo

Rear Projection Urinal

Wednesday, August 12th, 2009

This is almost a practical joke. This is potentially the best and wrongest multimedia device ever invented. Horse Bazaar is a pub in Melbourne Australia that has a urinal with a rear projector. This technology boasts that it makes possible that you don’t miss a single second of a game when you have to pee. I saw this invention first mentioned at Gizmodo. The picture is from MelbournePubs.com. If I happen to visit Australia one day this could be one pub to visit.. a fusion of art, music, technology and alcohol.

1221-2

Live 2011 Grand Prix

Tuesday, August 11th, 2009

Turku (a city in Finland) will be the European Capital of Culture for year 2011. For this reason Turku has initiated the world’s largest media art and new media competition Live2011 Grand Prix. They were making co-operation with the Assembly Summer 2009 festival where I saw their booth. A digital capital of culture, Live2011.com will be opened in 2010.

turku2011

Control Systems for Live Entertainment, 3rd Edition

Monday, August 10th, 2009

John Huntington’s Control Systems for Live Entertainment, 3rd Edition book offers an in-depth examination of control for lighting, lasers, sound, stage machinery, animatronics, special effects, and pyrotechnics for concerts, theme parks, theatre, themed-retail, cruise ships, museums, special and other events. This is an excellent reference concerning what’s going on in audio control as well as what lighting techs, studio heads, etc. This book demystifies control systems for entertainment.

If you are interested in how control systems and computer networks are used in all areas of live entertainment, this is the book to read. Control Systems for Live Entertainment is considered to be the industry standard reference on it’s field. The author has done a great job of explaining all the details of communications protocols in a very readable form. The book is not only to show control technicians and designers. It is also very suitable for computer scientists, electrical engineers, interaction designers, and anyone who thinks they understand what network communications is all about. If it’s your business to make things talk to teach other, read this book.

ControlSystems3edbookcoverreallysmall

Behind the scenes in Assembly Summer 2009

Saturday, August 8th, 2009

This is a quick picture report on my technology tour at Assembly Summer 2009 festival and AssemblyTV studios.

salikuva Assembly Summer 2009

This is view to the main party hall that hosts thousands of people with their computers. Every computer place has network Ethernet network connection.

saliav

This is the main show control center. On back of the picture on the right you see the big screen for the main hall. The truss hanging from roof is a convient place to put the computer and video monitor so they don’t take the space on the table. From right to left there are lights control, sound mixer and video mixer. Main program to the screen is at high definition resolution (720P).

lahettamo

lahettamotakaosa

Here is the TV brodacasting center. The signal goes from here to many different broadcasting channels: Cable TV, Internet boardcast, HDTV stream, DVB-H mobile TV, etc.. Back on the right side there is the electrical distribution panel and connections to other places around Hartwall arena. The white box on the left takes case of the TV feed that goes to the cable TV.

studio

Here is the TV studio. The white box on right hosts the light control equipment for the quiz show mentioned in the earlier blog posting.

assemblytvlahetys

Here is the broadcast goinng on at the studio. Quiz show is going on.

tvohjaamo1

Here is the control center for studio. At this time there was no broadcast going on this studio so this desk for empty.

lednaytto

In addition to the main vidoe projector screen there were many LED displays around the arena. They were used for different effects.

Madonna show in Helsinki

Friday, August 7th, 2009

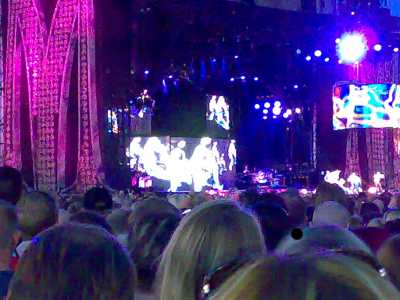

Yesterday Madonna Sticky & Sweet tour had a big concert in Helsinki. It was the biggest ever show held on Northern European countries and biggest on the whole Madonna tour. There was 85 000 people watching it. The show was two-hour multimedia blockbuster. It was a fantastic show to see. The choreography, visuals and live talent were world class and mind-blowingly well executed. Madonna performed great. How does a 50-year old mother of three have so much freakin’ energy!

Lots of technology was used to run the show. Madonna shows have earlier used new ways to manipulate and display video content and this show really mastered the multiple displays. I did not count, but there were very many of them on the show. Of course there were lots of intelligent lighting instruments and also some laser effects. Sound technology was as well very cutting edge: iGiCo SD7 Consoles, Sennheiser microphones, line array speaker system etc.. According to Madonna is Sticky & Sweet…and Powered by Mac most parts of eye candy were powered by Apple Mac computers.

madonna_skaalattu_060820091553

Scene Quiz Show lights

Wednesday, August 5th, 2009

Assembly TV broadcasts TV program from Assembly computer festival starting Thursday 6. August 2009 in many channels (Internet, cable TV, DVB-H mobile television, 3G mobile video etc.).

The broadcast has for many years contained Scene Quiz Show (the name has varied somewhat over years). It involves three contestants answering questions related to the event, demoscene and computers. I have worked with that show many times. When the show started we needed the answering buttons and lights like any real TV quiz show has. I built the first light system based on some really old PC (Sinclair PC200). The answering buttons connected to RS-232 port handshaking line. The parallel port data pins were connected to drive Velleman K2634 four channel triac card that switched the mains power to lamps on and off. The software for the PC was written using Turbo Pascal programming language, it was a modified version of some of my light control software I used to control some lights on parties in the 1990’s. The system had three buttons for competitors and three corresponding light outputs. In addition there was a “effect” output that give power for few seconds after each keypress, that could be used to control light and sound effects that tell that one competitor has pressed button. The system was built up very quickly, but it worked well in live TV broadcast without any problems (other then I was the only I could set up the whole system correctly).

Some years later the system was updated. The new setup was built around old Toshiba T3200 classic laptop PC. The answering buttons were still connected to serial port like earlier but were made much better looking. The light controlling part was updated. The actual mains power controlling was handled by my four channel light dimmer that accepts standard 0-10V control signals. The 0..5V signals that come from PC parallel port were converted to 0-10V and isolated with help of Kemo M125 relay module that plugs to PC parallel port. This was proven to be a well working system that was used for many years to come. The show is going to air this year as well.

The following images are from year 2001 show where the quiz show light were used first time if I remember correctly (images from Byterapers gallery).

assembly016t

assembly017t

Here is one picture from summer 2009 broadcast. In this broadcast the hardware was mostly the same, but that old laptop was replaced with a newer PC running a new control software.

assemblytvlahetys1

Futuristic computer interfaces

Wednesday, August 5th, 2009

The Inquisitr article 5 futuristic interfaces describes some interesting futuristic ideas how to interact with computer. This article describes five futuristic type interfaces that will be presented at SIGGRAPH 2009. the same interfaces. The same five interfaces are also covered in Technology Review article Five Futuristic Interfaces on Display at SIGGRAPH. The first article had problems with some of the example video, the second article has working video demonstrations for all five interfaces.
