Archive for September, 2010

Multimeter safety

Monday, September 13th, 2010

Safety must always remain priority number one when doing measurements with multimeters. Working safely, while making electrical measurements, is not rocket science. It’s a simple combination of careful planning, safe practices and using the right tools in the right way. The more voltage and current is present in the circuit, more careful you have to be. Fluke Safety video gives some overview on the multimeter measurements safety around power circuits.

Stock Multimeter Explosion shows one worst case scenario what can happen when you make mistakes with multimeter and high power energy source. This video illustrates why fused leads should be used with multi-meters. If you plug the leads in the wrong spot or have the wrong settings this is what happens. This video illustrates why fused leads should be used with multi-meters when measuring power circuits.

Check also High Energy Multimeter Destruction video for more examples of exploding multimeters and damages inside multimeters.

Web pages for mobile devices

Friday, September 10th, 2010

How to fit your website for the Apple iPad article tells what to do to make your web site work nicely on mobile devices like iPhone, iPad and many other.

The viewport meta tag was introduced by Apple for the iPhone, and it has since been picked up by Microsoft for Windows Mobile and Nokia for Maemo. The tag is ignored by regular desktop browsers.

<meta name="viewport" content="width=device-width" />
<meta name="viewport" content="width=800" />

What if you don’t want automatic zooming? Perhaps your site is designed for a specific size, or maybe it flexes for different sizes. You’ll need to adjust the viewport settings with a meta tag.

CSS media queries allow you to specify completely different stylesheets depending on how large the screen is. You can have one stylesheet for the iPhone and other mobile devices, one for the iPad, one for desktops and so on.

XLR connectors

Wednesday, September 8th, 2010

The XLR connector is an electrical connector design used mostly in professional audio and video electronics cabling applications, for microphones and line level signals. The most common is the three-pin XLR3, used almost universally as a balanced audio connector for high quality microphones and connections between equipment.

XLR connectors are superior to many other audio connectors for many reasons. Balanced XLR connectors use large diameter signal pins. They feature apositive locking action and incorporate properly designed strain relief as a feature. The female XLR connectors are designed to first connect pin 1 (the earth pin), before the other pins make contact, when a male XLR connector is inserted. With the ground connection established before the signal lines are connected, the insertion (and removal) of XLR connectors in live equipment is possible without picking up external signals. XLR connectors have rugged metal shell that can withstand the hard field enviroment without damaging (for example someone walking over the connector).

XLR connector is always better than other less robust audio connectors, but in the world of XLR connectors there are just acceptable quality and very good connectors. Many cheap and older XLR connectors look like this:

220px-Xlr-connectors

The downside of this design is that you have several small screws on the case. When you need to install the connector you need to open all of them and close when you have done the work. Repairing this kind of connector at the field is thus troublesome (you need suitable screwdriver with you and you easily loose the small screws). Also the strain relief system on the connector is not the best, especially it has hard time to securely hold the thinner cables.

Neutrik started quite many years ago to make the following kind of improved XLR connectors:

neutrik-xlr

NeutrikNC3MXMaleXLR

Their improvemens include the fact that you can easily open and close the connector without any tools or handling screws. This makes usign the connectors and repairing cables on the field easier. I really like this connector design. I think is is a huge improvement over the older design and worth of some extra price.

Schulzkabel also makes quite similar looking connectors that are cheaper. I have successfully used them and they feel like almost as good as the Neutrik XLR connectors.

Secret world of oscilloscope probes

Tuesday, September 7th, 2010

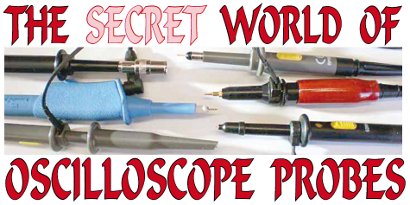

Secret world of oscilloscope probles article written by Doug Ford and published by Silicon Chip magazine, describes how high frequency oscilloscope probes really work. Most textbooks treat scope probes as a combination of a resistive divider in combination with capacitors to provide an extended frequency response. But as will be revealed, the reality is that they are much more complex in principle. The hidden secret to designing a good 10x oscilloscope probe seems to be to use lossy transmission line cable! Usually the coax cable on probles has been made deliberately lossy, to reduce the effects of end-to-end transmission-line reflections!

scopeprobes

Compression using Canvas and PNG

Tuesday, September 7th, 2010

This is one crazy web coding idea to compress web data! If you want to compress JavaScript and CSS you could reverse engineer a packing algorithm in JavaScript or you could use a lossless packing system that is already in use and supported in browsers (and designed for completely different things).

Compression using Canvas and PNG-embedded data article presents a method that allows packing the 124 kilobyte Prototype library embedded in a 30 kilobyte 8 bit PNG image file. The data inside PNG image is and read out with JavaScript using the getImageData() method on the canvas element.

Want to pack JS and CSS really well? Convert it to a PNG and unpack it via Canvas provides some practical code examples to do that.

prototype-1.6.0.2.packed.js

It is pretty amazing how efficient this way of packing is. PNG picture standard selected good loss-less coding system and it is used here.

Ceramic capacitor failures

Sunday, September 5th, 2010

Multilayer ceramic capacitors (MLCs) have become one of the most widely used components in the manufacture of surface mount assemblies, and are inherently very reliable. But because they are made of ceramics that is brittle, these normally trustworthy devices can fail unexpectedly if they are not handled right in the electronics layout design and manufacturing. MLCs can fail either immediately or (arguably much more seriously) during service. Failure mechanisms in ceramic capacitors article tells you more about how to correctly use MLCs, what not to do and how those capacitors usually fail. When you investigate failures, you should always expect the unexpected. Cracks are always bad news! The following picture of failed capacitor is from Failure mechanisms in ceramic capacitors article.

fm_fmcc_phb

Audio equipment tweaking

Thursday, September 2nd, 2010

Some people love tweaking their equipment. Quite often some tweaking does not really change anything you hear, and sometimes there might be noticeable change, but not always for the better. Most of the time, second-guessing a piece of equipment’s designer component choices results worse than original performance. There are cases where tweaking can have difference, but usually it is not worth of the problem.

Typically the component values in equipment are carefully chosen to get best overall results. The designer generally knows what he’s doing and has chosen the values and component types pretty well. Unless you are a pretty good expert on the field, there is a good change that your different choice you make is worse than the original. Usually it’s best to leave things alone, unless you are an expert in the field and can fully understand and analyze how those changes affect the circuit.

Some people try to change filter capacitor capacitor values based on simple theory that bigger always is better. The original equipment manufacturer has chosen the values for his/her filter caps for a reason, typically based on number of things to consider. It might be something as simple as the determination that a larger value adds only expense to the final product, without adding any measurable or discernible improvement in performance. It could also be that the values are chosen so that they match other parts of the power supply well (transformer, rectifier diodes, fuses etc.).

A significantly larger capacitance values than the original can over stress some other components and/or cause the equipment fuse to blow when you power up the equipment (maybe not immediately but after a short time). Most likely “more” will not equate to “better”. The rule of thumb should be: “if it ain’t broke, don’t fix it.”

If you have determined that the current filtering are leaking, or have failed in some other way (resulting in hum), then replace them with new ones with of the same value.

There are some components that have had significant changes over the years. Some early popular op-amps (like 709s, 741s, LM301s, etc.) were fine for low performance applications (portable radios etc.) but simply weren’t very good for “hi-fi”. Those early op-amps were marginal for “hi-fi” because they had a combination of asymmetrical slew rate and high-noise. Changing those for a better ones can help sound here.

But when changing op-amps you need to know what you are doing. Replacing an old op-amp with a new different better one can fix some problems but has risk of creating new problems. So when changing op-amp you need to really understand what you are doing.

volume11

Web design for engineers

Wednesday, September 1st, 2010

I hate e-book flippy magazines. I am repeatedly amazed at the collective delusion that seems to strike otherwise sensible engineering magazine publishers and editors when they are exposed to this Flash-based junkware.

The publishers try to make the magazine to look a magazine page: with excess white space, multiple columns, unnecessary page footers and page numbers. And usually the text is unreadable at full page size and you need to zoom in and scroll back and forth to read the article. Very annoying and not user friendly. And then there are those useless page-turning animations and idiotic “whooshing” sound that make magazine reading sluggish.

The problem is that I don’t want all that crap. I don’t want to start the reading by learning the bad interface to the magazine’s stupid e-reader. I want something that is fast, simple, and non-intrusive. Flash web sites do not give that. We can blame both Adobe and Flash site designers for that.

My advice to publisher: If you’re going to present the material online, present it in a way that takes advantage of HTML: content can be optimally displayed on many different kind of viewing devices.

I you can’t do that, offer a PDF file of the whole issue, so I can use my own machine to read that rather than having sluggish web interactions for every single page turn. Why is PDF not the default? Did we really need a proliferation of proprietary, inflexible, non-portable digital publication formats? No we don’t. Even thought the Adobe Reader and PDF stuff is far from ideal, it is better than this stupid Flash based magazine reader crap.

Some magazines have very well succeeded in putting their content on HTML readable form on web and also allow to download pdf version.

This posting was inspired by END blog posting that was once available at http://www.edn.com/blog/1700000170/post/170053817.html?nid=2433&rid=8103186 (but not anymore there..).
