Arduino and ultrasound distance sensor

I bought some time ago HC-SR04 Ultrasonic Sensor Distance Measuring Module to play with ultrasound distance measurements with Arduino Duemilanove 2009 Atmega 328P SCM Board.

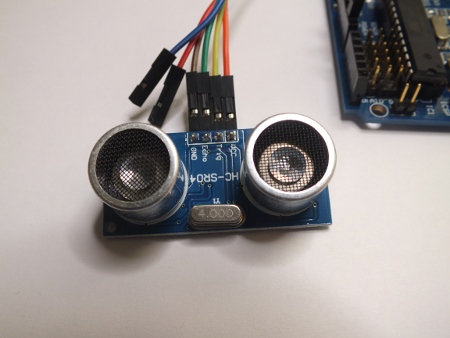

ultrasound1s

The working principle of the HC-SR04 Ultrasonic Sensor Distance Measuring Module when the module get trigger “start” pulse, it sends eight 40khz square wave pulses and automatically detect whether receive the returning pulse signal. If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving. So the pulse length tells the time of flight from sensor to measured distance and back. The HC-SR04 Ultrasonic Sensor Distance Measuring Module was wired to Arduino board with Male to Female DuPont Breadboard Jumper Wires (pretty useful accessory for prototyping with Arduino).

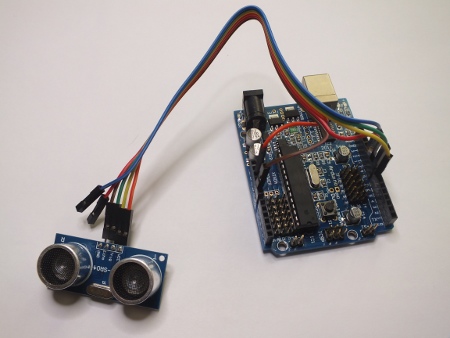

ultrasound2s

Arduino programming environment contains Ping example made for an ultrasonic range finder from Parallax. It detects the distance of the closest object in front of the sensor (from 2 cm up to 3m). It works by sending out a burst of ultrasound and listening for the echo when it bounces off of an object. The Arduino board sends a short pulse to trigger the detection, then listens for a pulse on the same pin using the pulseIn() function. The duration of this second pulse is equal to the time taken by the ultrasound to travel to the object and back to the sensor. Using the speed of sound, this time can be converted to distance.

The HC-SR04 Ultrasonic Sensor Distance Measuring Module has a little bit different interface, because it had separate pins for trigger and echo. This means that I needed to modify the example source code (was not too hard).

Here is my modified code (over 90% based on Ping example that comes with Arduino IDE 1.0.5):

/* Ping))) Sensor

This sketch reads a PING))) ultrasonic rangefinder and returns the
distance to the closest object in range. To do this, it sends a pulse
to the sensor to initiate a reading, then listens for a pulse
to return. The length of the returning pulse is proportional to
the distance of the object from the sensor.

The circuit:
* +V connection of the PING))) attached to +5V
* GND connection of the PING))) attached to ground
* Trigger connection of the PING))) attached to digital pin 7
* Echo connection of the PING))) attached to digital pin 8

http://www.arduino.cc/en/Tutorial/Ping

created 3 Nov 2008
by David A. Mellis
modified 30 Aug 2011
by Tom Igoe
by Tomi Engdahl

This example code is in the public domain.

*/

// this constant won't change. It's the pin number
// of the sensor's output:
const int pingTrigPin = 7;
const int pingEchoPin = 8;

void setup() {
// initialize serial communication:
Serial.begin(9600);
}

void loop()
{
// establish variables for duration of the ping,
// and the distance result in inches and centimeters:
long duration, inches, cm;

// The PING))) is triggered by a HIGH pulse of 2 or more microseconds.
// Give a short LOW pulse beforehand to ensure a clean HIGH pulse:
pinMode(pingTrigPin, OUTPUT);
digitalWrite(pingTrigPin, LOW);
delayMicroseconds(2);
digitalWrite(pingTrigPin, HIGH);
delayMicroseconds(5);
digitalWrite(pingTrigPin, LOW);

// The same pin is used to read the signal from the PING))): a HIGH
// pulse whose duration is the time (in microseconds) from the sending
// of the ping to the reception of its echo off of an object.
pinMode(pingEchoPin, INPUT);
duration = pulseIn(pingEchoPin, HIGH);

// convert the time into a distance
inches = microsecondsToInches(duration);
cm = microsecondsToCentimeters(duration);

Serial.print(inches);
// Serial.print("in, ");
Serial.print(", ");
Serial.print(cm);
// Serial.print("cm");
Serial.println();

delay(100);
}

long microsecondsToInches(long microseconds)
{
// According to Parallax's datasheet for the PING))), there are
// 73.746 microseconds per inch (i.e. sound travels at 1130 feet per
// second). This gives the distance travelled by the ping, outbound
// and return, so we divide by 2 to get the distance of the obstacle.
// See: http://www.parallax.com/dl/docs/prod/acc/28015-PING-v1.3.pdf
return microseconds / 74 / 2;
}

long microsecondsToCentimeters(long microseconds)
{
// The speed of sound is 340 m/s or 29 microseconds per centimeter.
// The ping travels out and back, so to find the distance of the
// object we take half of the distance travelled.
return microseconds / 29 / 2;
}

This code outputs lines with two numbers (inches and centimeters) separated by comma. The communications speed is 9600 bps. Everything worked well with TeraTerm. The output was two numbers per line separated with comma outputted at 9600 baud rare. The numbers tell the distance in inches and centimeters.

Now time to try to get some graphs. This could be down in many ways, for example using Processing like in Graph example, Realtime Plot of Arduino Serial Data Using Python, Graphing with Excel or use application specifically made for this like SerialChart.

SerialChart is an open source application for charting data sent via RS-232 port in real time. I had used the software earlier successfully, read the documentation and checked SerialChart Tutorial, but for some reason I could not get data from Arduino that was mapped to COM11. I finally found that I had the same issue issue that was mentioned at Serial chart says that the com port is busy when its not page:

This a problem that comes from the qt serial library. So I will not be fixing that but as a workaround I want to let you know that you’re not stuck with high-numbered ports that Windows assigns , you can change them to something lower than 10, for example COM7 , COM5

I configured Arduino USB serial port number to COM2 and now SerialChart worked well.

SerialChart configuration I used:

[_setup_]
port=COM2
baudrate=9600

width=1000
height=201
background_color = white

grid_h_origin = 100
grid_h_step = 10
grid_h_color = #EEE
grid_h_origin_color = #CCC

grid_v_origin = 0
grid_v_step = 10
grid_v_color = #EEE
grid_v_origin_color = transparent

[_default_]
min=-1
max=1

[Field1]
color=gray
min=0
max=255

[Field2]
color=red
min=0
max=255

Here is the output I got with SerialChart program:

serialchart_scaled

Now I can visually see what the sensor senses and also see the numeric values.
