3 Band Equalizer

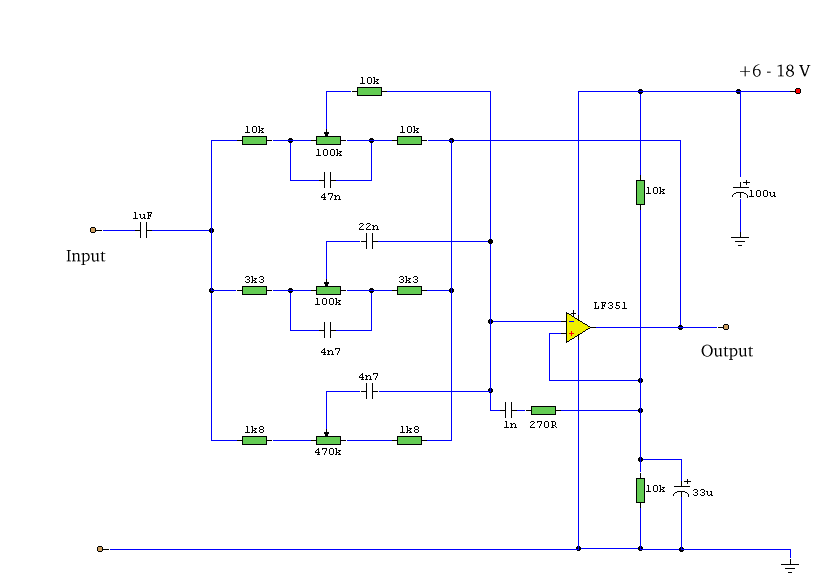

A tone control circuit made with a single op-amp and having three ranges, bass, middle and treble controls.
Using a single op-amp this easy to make equalizer offers three ranges, low frequency,mid frequency,and high. With component values shown there is approximately +/-20dB of boost or cut at frequencies of 50Hz, 1kHz and 10kHz. Supply voltage may be anything from 6 to 30 Volts. Maximum boost 20dB is only realized with maximum supply voltage of 18 Volt.
Content sourced from Zen SchematicsCircuit:Andy Collinson
