Buffer Amplifier

Description:

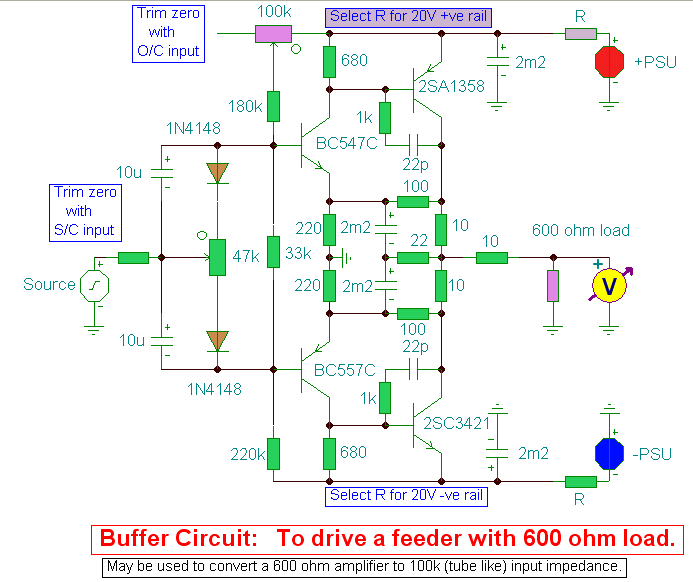

A hifi preamplifier designed to convert high output impedance amplifiers to 600 ohm outputs.

Circuit Notes

A PCB layout for this circuit has been designed by Graham and is available for download by clicking this link.

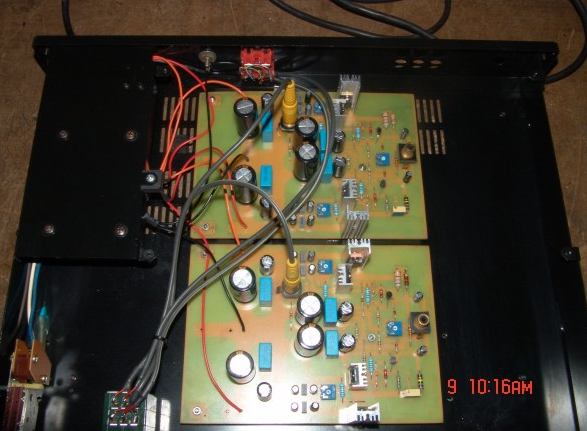

Finished Buffer Amplifier


Return to Audio Circuits

Content sourced from Zen Schematics

Circuit:Graham Maynard
