Hi-Fi Preamplifier

Circuit Notes

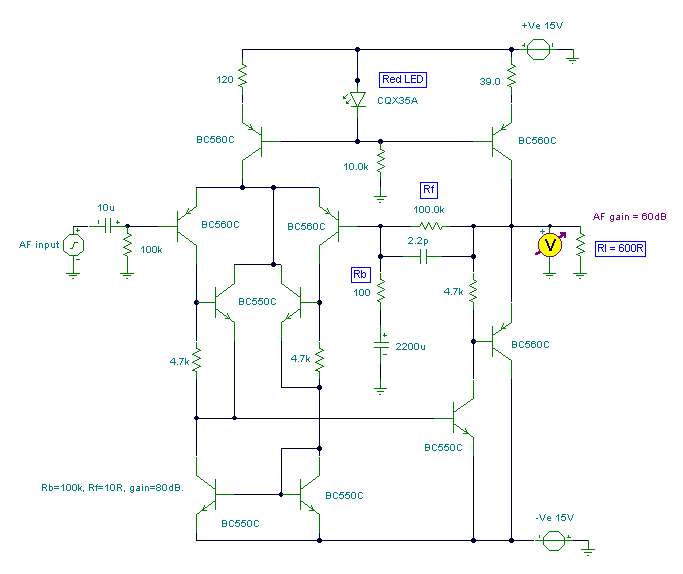

This circuit was submitted by Graham Maynard from Newtownabbey, Northern Ireland. It has an exceptionally fast high frequency response,as demonstrated by applying an 100kHz squarewave to the input. All graphs were produced using Tina Pro.

The Preamp's Bode Response

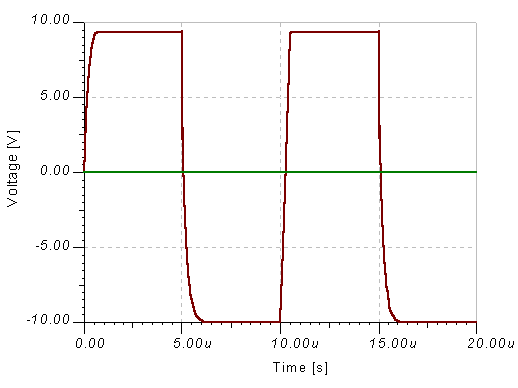

Squarewave Response with 100kHz Input Signal Applied

Total Noise at Output Measured with 600R Load

Signal to Noise Ratio at Output


Return to Audio Circuits

Content sourced from Zen Schematics

Circuit:Graham Maynard
