Notch Filter


A variable notch filter with both high and low pass filters.

Circuit Notes

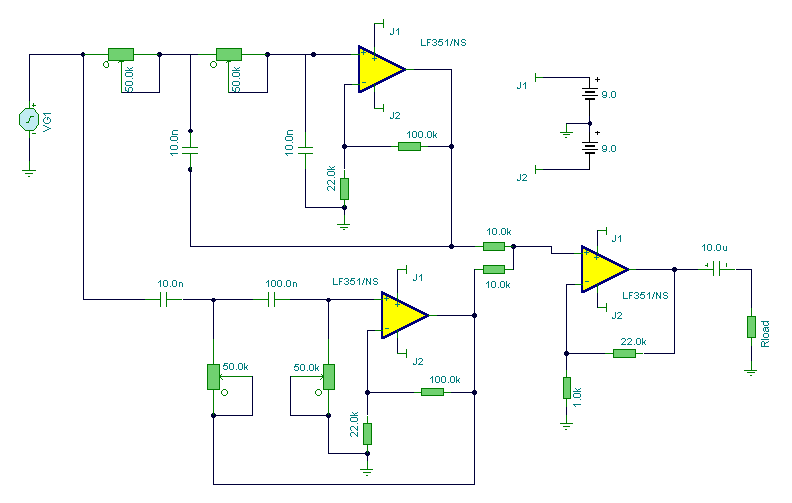

At first glance this circuit looks fairly complex, but when broken down,can be divided into high pass and low pass filter sections followed by a summing amplifier with a gain of around 20 times. Supply rail voltage is +/- 9V DC. The controls may also be adjusted for use as a band stop (notch) filter or band pass filter.

Return to Audio Circuits

Content sourced from Zen Schematics

Circuit:Andy Collinson
