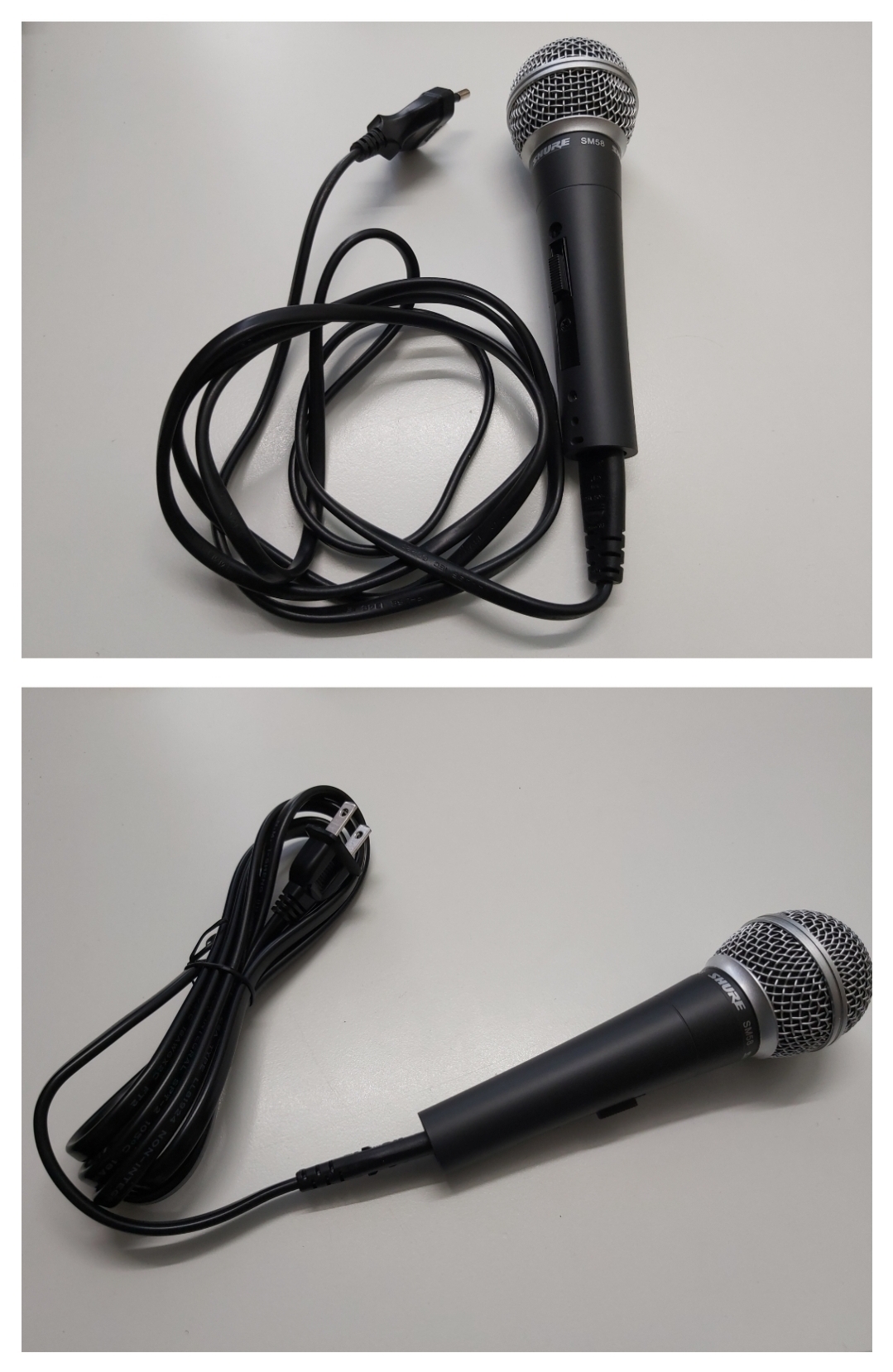

Picture source: Facebook https://www.facebook.com/share/p/1DrRjhJH2r/

I have been reached that If you should not use a knot for cable strain relief.
⚠️ Important: If this is a 230 V / mains-powered device, proper mechanical strain relief is mandatory for safety and compliance.
A knot is not a safe strain-relief method, especially for electrical cables.
If this is for mains power, lab equipment, or a commercial product, knots are simply not acceptable.

Here’s why it’s considered unsafe ❌:
Uncontrolled bending radius → damages conductors over time
Stress concentrates at one point instead of being spread out
Insulation can be crushed or cut, especially on flexible cords
Not compliant with electrical standards (IEC, UL, etc.)
In mains voltage, a pulled knot can still transfer force to terminals
Proper strain relief must mechanically clamp or grip the outer jacket of the cable and transfer pulling force to the enclosure, not the conductors.

✅ Safe alternatives:
Cable gland (PG/M thread, rubber compression)
Strain-relief bushing / grommet
Screw-mounted cable clamp
Zip tie + fixed anchor (inside enclosure, jacket only)

Here is an analysis of each method:

1. Cable Gland (PG/M thread, rubber compression)

This is one of the most professional, secure, and robust methods for cable entry and strain relief.

How it works safely: A cable gland consists of a threaded body, a rubber or neoprene compression seal (grommet), and a compression nut. As you tighten the nut, the seal compresses radially around the cable’s outer jacket. This action creates both a strong mechanical grip for strain relief and a watertight/dust-tight seal (often rated to IP68).

Best Practices for Safety:

Correct Sizing: It is crucial to select a gland whose sealing range matches the exact outside diameter of your cable. A loose gland offers no protection, while an undersized one can damage the cable jacket.

Proper Tightening: Follow the manufacturer’s torque specifications. Under-tightening can lead to cable slippage, while over-tightening can crush the cable’s internal insulation.

Material Selection: Choose the right gland material for the environment. Plastic (nylon) is common for general indoor/outdoor use, while metal (brass, stainless steel) is preferred for industrial or hazardous locations for added durability and electromagnetic compatibility (EMC).

2. Strain-Relief Bushing / Grommet

These are commonly used in consumer electronics and appliances for a cost-effective and reliable solution.

How it works safely:

Strain-Relief Bushing: This is typically a two-part nylon component that clamps onto the cable and then snaps into a pre-punched hole in the enclosure wall. The geometric shape of the bushing, once snapped in, prevents it from being pulled back through the hole, effectively anchoring the cable.

Grommet: A simple rubber grommet protects the cable from chafing against the sharp edges of a metal hole. While it provides some friction, it is not a primary strain relief device on its own. However, some “strain-relief grommets” are designed with an internal membrane that grips the cable.

Best Practices for Safety:

Match to Cable and Hole: You must use a bushing designed specifically for the cable’s profile (round or flat) and dimensions, as well as the panel hole size and thickness. A poor fit will result in failure.

Installation Tool: For high-volume applications, a special assembly tool is often recommended to ensure the bushing is fully and correctly compressed and seated without damaging the cable.

3. Screw-Mounted Cable Clamp (P-Clip / Saddle Clamp)

This is a simple, mechanical method widely used in automotive, industrial, and general wiring applications.

How it works safely: A metal or plastic clamp, shaped like the letter “P” or a U-saddle, is placed over the cable and secured to a fixed surface inside the enclosure with a screw. The clamp holds the cable jacket firmly against the surface, preventing movement.

Best Practices for Safety:

Correct Size: The internal diameter of the clamp must match the cable diameter closely. A clamp that is too large will not grip, and one that is too small will pinch and damage the cable.

Cushioning: For metal clamps, choose a version with a rubber or vinyl cushion lining. This protects the cable jacket from abrasion and distributes the clamping force more evenly, preventing damage to the internal conductors.

Secure Anchoring: Ensure the screw is fastened securely into a solid part of the enclosure so the anchor point itself does not fail under tension.

4. Zip Tie + Fixed Anchor (Inside enclosure, jacket only)

This is a versatile and common method, especially for retrofitting or custom wiring, but it requires careful execution to be safe.

How it works safely: A zip tie (cable tie) is used to bundle the cable to a fixed anchor point inside the enclosure. The anchor can be an adhesive-backed mount, a screw-mount base, or a dedicated tie-down point molded into the enclosure.

Best Practices for Safety:

Grip the Jacket Only: The most critical rule is to only secure the outer jacket of the cable. Never place a zip tie around the individual insulated conductors after the jacket has been stripped. This can crush the insulation and cause a short circuit.

Do Not Over-Tighten: Tighten the zip tie by hand just enough to prevent the cable from sliding. Using a tool to over-tighten can easily crush the cable’s internal structure, leading to long-term failure.

Use Correct Anchors: Adhesive anchors can fail over time, especially in warm environments. For a permanent and safe solution, use a screw-mounted anchor base secured to the enclosure wall.

Anchor Location: Place the anchor as close as possible to the point where the individual wires break out of the jacket to minimize movement at the terminations.

Examples:
This YouTube video, it’s a great visual guide on how to properly install a cable gland, which is one of the most secure methods
Strain Relief Connectors… New design for more flexibility

I hv been seeing circuits like this i will be wondering what a hell are they publishing like this without shame !

Dangerous, do not use !

This is what I call an “automatic house ingnitor circuit”

Lithium battery exploder circuit

That looks like a one way ticket to frying your USB controller, and a Lithium battery that may burst in to flames.

No over voltage protection, no Over-current protection, the only resistor is on the LED. That is an express way to burning someones house down.

I would not recommend this circuit. The USB 3.0 interface will supply 5V. There will be a 0.7 V drop across the diode, so you will be trying to charge the 3.7 V Lithium battery with 4.3 V. The Voltage to charge the battery should not exceed 4.2 V. I recommend you use a proper BMS to control the charging of the battery. The USB voltage can go higher than exactly 5V, as the USB voltage range varies, with traditional standards being around 5V but with a range of approximately 4.4V to 5.25V.

A lithium-ion battery can explode or catch fire due to a phenomenon called thermal runaway, which is a dangerous, self-perpetuating chain reaction that causes a rapid increase in temperature. This is most often caused by internal short circuits from manufacturing defects or damage, overcharging, or exposure to high temperatures. While a full explosion is possible, more often it results in the battery venting hot gases and flames through a safety valve.
Video: Here’s what happens when a lithium ion battery explodes

After some research on some product information pages and Wikipedia Network Isolator page I found out that there are some special cases where there are sensible reasons to use such extra isolation device on Ethernet network. After some more searching, I also found products designed for industrial applications and audio applications.

PATIENT PROTECTION
Galvanic isolation of the Ethernet interfaces on medical electrical equipment or systems
for which patients must be protected from harmful leakage currents in line with standards.

APPLIANCE PROTECTION
Protection of particularly valuable devices from ripple voltages and surges from the edge of the network.

MEASUREMENT TECHNOLOGY
Protection of electrical measurement and monitoring equipment from external voltages and interference voltages from the
Ethernet cabling.

POTENTIAL DIFFERENCES (BUILDING TECHNOLOGY)
Potential equalisation currents are prevented in computer systems connected via an Ethernet
cabling over greater distances.

AUDIO
Reduction of low-frequency AC voltages (mains ripples), which are caused by the network connection, to an imperceptible level.

Medical applications

Network isolators are used in the medical industry to protect patients against leakage currents. IEC standard IEC 60601-1 (3rd edition) specifically deals with medical electronic and electrical equipment and systems, and classifies non-medical devices as potential hazard sources. Network isolators work to remove this hazard, by electrically disconnecting medical devices from a network. They are often installed in the medical field in conjunction with isolation transformers, which serve to protect the patient from electrical faults. The international standard IEC 60601-1 Medical Electrical Equipment (3rd edition) specifies stringent criteria on the safety and isolation of medical devices. Very many medical institutions use Ethernet isolators for electrical safety and to keep equipment interference free. Medical-grade Ethernet isolators must follow strict regulations concerning the isolation level that an Ethernet isolator provides. Isolators marketed to meet European Medical Device Directive (EN6060-1) typically have isolation level of 4kV or higher.

Industrial applications

Network isolators have industrial applications in overcoming the problems of differing ground potentials across networks, or between network components for example to stop shield currents on shielded Ethernet cable (ground loop currents) and on electrical testing facilities where higher that normal office environment electrical disturbances are present. There are also uses in electronics testing  systems where dangerous voltages are present.

Ethernet Isolator combines intrinsically safe energy limitation and galvanic isolation page tells that the FieldConnex® Ethernet Isolator combines intrinsically safe energy limitation and galvanic isolation into one product. Now Ethernet connections are plug and play in Ex-Zone 1. Intrinsically safe Ethernet Isolator EI-0D2-10Y-10B product provides galvanic isolation according to EN50020 for 10 BASE-T/100 BASE-TX. It contains active electronics and needs a power source to operate.

Audio applications

Ground loops and high frequency noise have known to cause all kinds of issues with sensitive audio systems. Especially people tuning their HiFi systems are interested could Ethernet connection be improved in some way. Because almost all the audiophiles would have experienced of tuning their own audio system with variety of cables or accessories in order to enhance the music sound from their treasured audio systems, some special HiFi equipment manufacturers have seen market for expensive Ethernet isolators for HiFi applications. So called ‘audiophile’ grade ethernet cables have made inroads into specialist audio dealers.

Audio Stream Ethernet Accessories and Cables page has information on several special (expensive) accessories that are claimed to provide improvement when used with HiFi equipment. In Ethernet isolation sector the page lists SOtM iSO-CAT6 Ethernet isolator. SOtM iSO-CAT6 Ethernet isolator product page claims that noise interference created by LAN port has enormous effect to system sound and SOtM iSO-CAT6 may offer certain varying sound improvement (for other views check reviews at 6moons and avrev). SOtM iSO-CAT6 manual says that this product provides isolation 1500Vrms, 0.5mA, 60sec (same level as normal Ethernet cards).

Are the isolators really needed in audio system? Maybe not in most cases (but there can be some special cases where extra isolation can have some effect). By default the ethernet ports are isolated with transformers. However – ground loops from shielding still can exist if you use shielded cables. If you are worried on ground loops on audio system, I recommend to use unshielded Ethernet cables, so you get no ground loop. If you are really paranoid on isolation, isolate the audio with a fiber optic cable. Some people who have written on their experiences have found out no difference on copper, isolated copper or fiber on sound quality. This no difference will also apply to special Ethernet cables: The use of solid core verses stranded or gold verses silver for the conductors for this link in particular is just putting lipstick on a pig. Again, this is digital side… The likelihood of there being a genuine difference rather than a psychoacoustic cause for the described difference is much, much lower given known physics.

How Ethernet Isolators Work

An Ethernet isolator separates the electrical currents of multiple devices: it allows the Ethernet data signals to pass without allowing the two circuits to physically contact each other. The Ethernet isolator is basically just several 1:1 Ethernet transformers put between the RJ-45 connections (two needed for 10/100 Mbit/s Ethernet, four needed for 1 Gbit/s Ethernet). Typically all those transformers are built into one transformer module similar to ones used in Ethernet cards and switches. Such isolator consists of a small PCB at the back panel with two RJ45 connectors and a LAN transformer in between. This would provide an additional 1500V to 4000V of isolation depending on the transformer chosen.

Network isolators are commercially available in various designs. Medical-grade Ethernet isolators must follow much stricter regulations concerning the isolation level that Ethernet isolators for industrial uses.

Ethernet isolators are typically constructed using the same technique as normal Ethernet port. Ethernet specification needs magnetic transformer coupling between RJ45 connector and electronics. Most modern Ethernet ports with MDIX functionality (auto-detect direct or cross-connect) use 1:1 transformers optimized for Ethernet frequencies (frequency range depends on line speed) and impedance (100 ohms)  for all used signal pairs.

Transformers offer a very good common mode rejection: A transformer only “sees” the voltage accross its windings, not the common voltage both ends of the winding are driven to simultaneously. You get a differential front end without a deliberate circuit, just basic physics.

An Ethernet isolator could be basically built using one such transformer module (contains 2 or 4 transformers in one case) that is just wired between two RJ45 connectors. Standard Ethernet transformers provide typically 1500Vrms isolation. If higher isolation level is needed, a suitable special transformer with improved isolation specification needs to be manufactured. For example medical isolator can isolate the data AND the shield up to 5.000V. The nic transformers only isolate the data up to 1.500V. Here is picture of MI 1005 E Medical Built In Isolator showing that there is just transformers (inside black box in the center) and two RJ45 connectors.

Isolation is a very good idea on communications systems that are linking lots of different hardware over a wide area: You don’t want fault current/voltages in the mains wiring or devices to spread onto your communications wiring.

Ethernet transformer links:
http://www.haloelectronics.com/products/lan/ethernet/
http://www.mouser.fi/new/molex/molexRJ45jacks/
http://www.mouser.fi/new/halo-electronics/halo-ethernet-transformers/
https://www.eeweb.com/company-blog/microchip/migrating-from-the-lan9115-to-the-lan9210/

Links to more information:
http://www.diyaudio.com/forums/pc-based/154048-ethernet-galvanic-isolation.html
http://www.bb-elec.com/Learning-Center/All-White-Papers/Ethernet/Power-over-Ethernet-PoE.aspx
http://hackaday.com/2010/10/26/ethernet-connection-using-capacitive-coupling/
http://www.youritronics.com/magnetic-less-ethernet/

Some product links:

I have found those with Google search. I have not used any of those or recommend them.
http://industrialcomponent.com/baaske/2006633.html
http://industrialcomponent.com/baaske/ethernet-isolation.html
Ethernet Data Isolator – 10BASE-T/100BASE-TX
http://industrialcomponent.com/baaske/2006633.html
L-com 10/100/1000 Ethernet Data Isolator (EN60601-1 Compliant) provides isolation up to 4 kV
Bourns 360 V dc 3kA 1500 Isolated Ethernet Protector, Wall Mount Mounting is an Ethernet surge protector product that also promises to provide 5 kV isolation for 10/100/1000 Mbit/s Ethernet.
EMO EN-100C :: Network isolator for PCB mounting is intended for integration on the PCB of the device being protected. The devices in the EN-100-series meet the requirements of IEC 60601-1 (3rd edition) and IEC 60601-1-2 for medical settings
Phoenix Contact Network isolator – FL ISOLATOR 100-RJ/RJ – 2313931 is a passive passive network isolator for electrical isolation in Ethernet networks up to 4 kV and speeds of up to 100 Mbps.
https://www.mtl-inst.com/images/uploads/datasheets/is_ethernet/9468-ET.pdf
http://www.mmcchina.com/Upload/whitepaper/MMC_Whitepaper12EN.pdf
http://industrialcomponent.com/baaske/ethernet-isolation.html
http://industrialcomponent.com/baaske/2006633.html
http://www.baaske-medical.de/media/content/Datasheet_MI1005_MI1005E.pdf
http://industrialcomponent.com/baaske/2006633.html
https://www.dustinhome.fi/product/5011222413/rj45-network-isolator-6kv
https://www.dxengineering.com/parts/dxe-iso-plus-2
https://www.phoenixcontact.com/en-pc/products/network-isolator-fl-isolator-1000-rj-rj-2313915

Sources:
http://www.tech-faq.com/ethernet-isolator.html
http://electronics.stackexchange.com/questions/180415/ethernet-3000v-isolation
http://www.mouser.fi/new/halo-electronics/halo-ethernet-transformers/
http://www.diyaudio.com/forums/pc-based/154048-ethernet-galvanic-isolation.html
http://www.6moons.com/audioreviews2/sotm2/1.html
http://www.avrev.com/home-theater-accessories/acoustics-eq-room-tuning/sotm-iso-cat6-lan-filter-and-tx-usbhub-review-3.html
http://www.computeraudiophile.com/f22-networking-networked-audio-and-streaming/audiophile-ethernet-cables-13798/
http://www.computeraudiophile.com/f22-networking-networked-audio-and-streaming/ethernet-cables-audiostream-test-17713/
http://electronics.stackexchange.com/questions/27756/why-are-ethernet-rj45-sockets-magnetically-coupled/27762
http://www.diyaudio.com/forums/pc-based/154048-ethernet-galvanic-isolation.html
