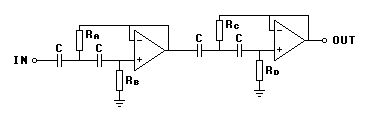

Active Filter: Linkwitz 24dB Highpass
(4st order, 24 dB/octave, Highpass)
C=4.7n-10nF
Ra=Rc=1/(2*sqr(2)*pi*Fc*C)
Rb=Rd=2Ra
Units: Rx [Ohm], C [F], Fc [Hz]
| Contributor: | Joakim �gren |
| Source: | ? |
