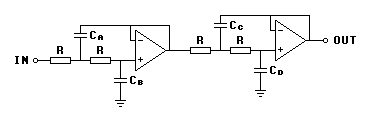

Active Filter: Linkwitz 24dB Lowpass
(4th order, 24 dB/octave, Lowpass)
R=4.7k-10 kOhm
Ca=Cc=2*Cb
Cb=Cd=1/(2*sqr(2)*pi*Fc*R)
Units: R [Ohm], Cx [F], Fc [Hz]
| Contributor: | Joakim �gren |
| Source: | ? |
