Function generator kit

A function generator is usually a piece of electronic test equipment or software used to generate different types of electrical waveforms over a wide range of frequencies. Some of the most common waveforms produced by the function generator are the sine, square, triangular and sawtooth shapes. Function generators are used in the development, test and repair of electronic equipment. The classic analogue ICs to build function generators are the Exar XR2206 and the Intersil ICL8038 integrated circuits, which can generate sine, square, triangle, ramp, and pulse waveforms at a voltage-controllable frequency.

I have very many years ago built a function generator using ICL8038 IC. That circuit has become slightly unreliable over the years, and I though of maybe having a newer function generator circuit. Instead of building a circuit based on plans like XR-2206 5Hz to 300kHz Function Generator I deviced to save some effort… I found a cheap kit XR2206 Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ that seems to suit for me well. Specifications:

Voltage supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz – 1MHz

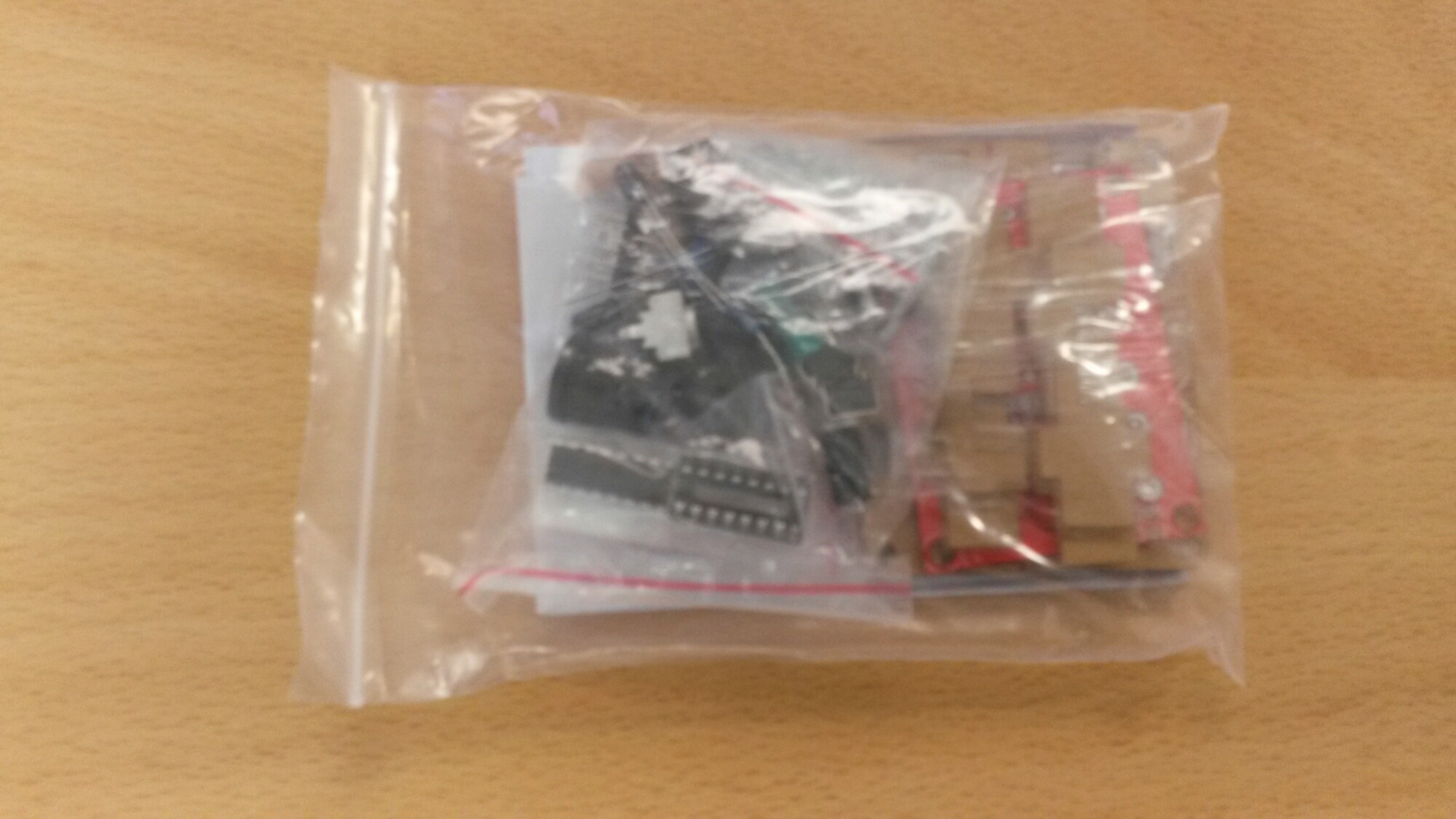

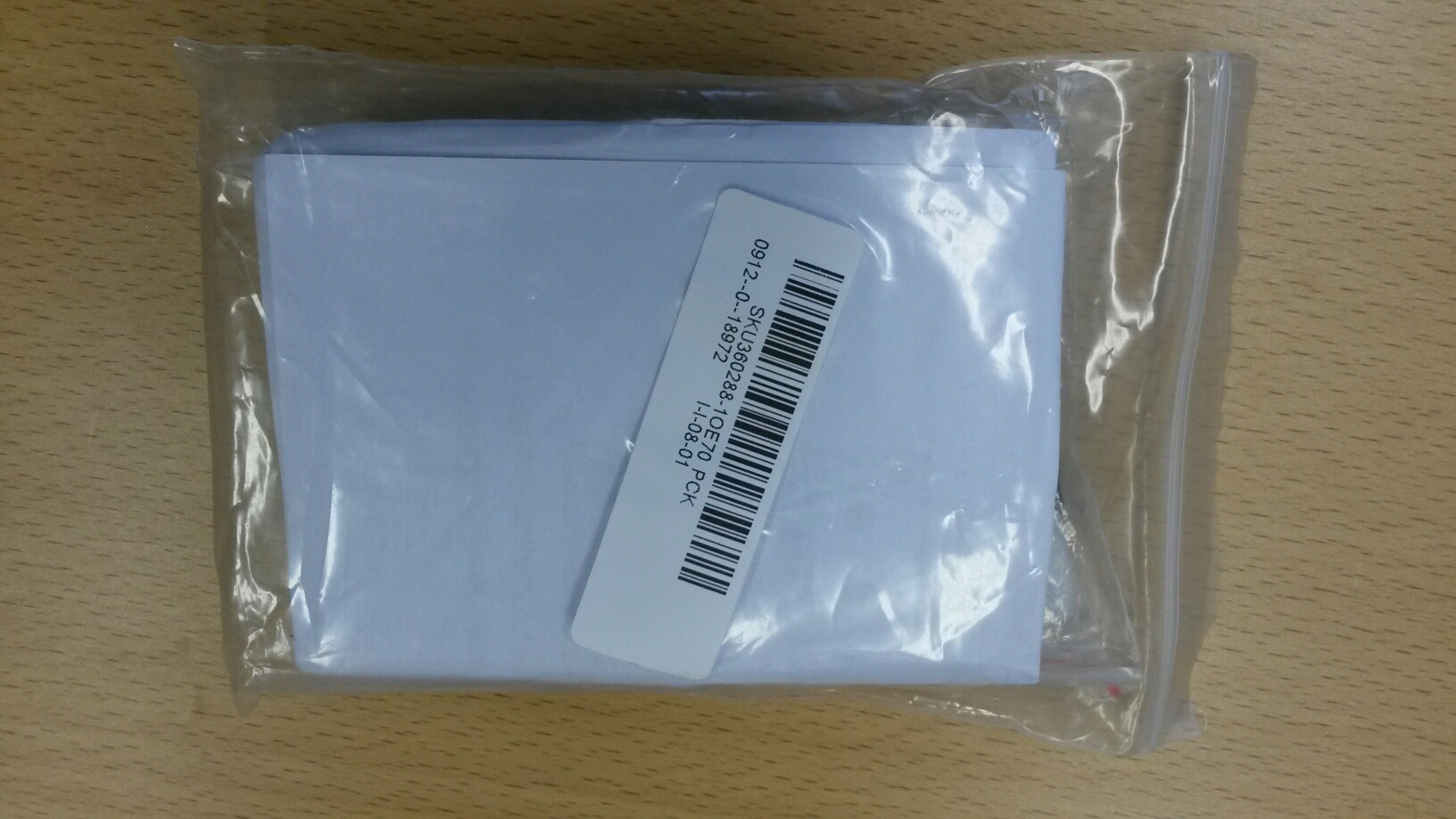

The kit arrived well packed and promptly. Everything was packed in a plastic bag that was on padded envelope.

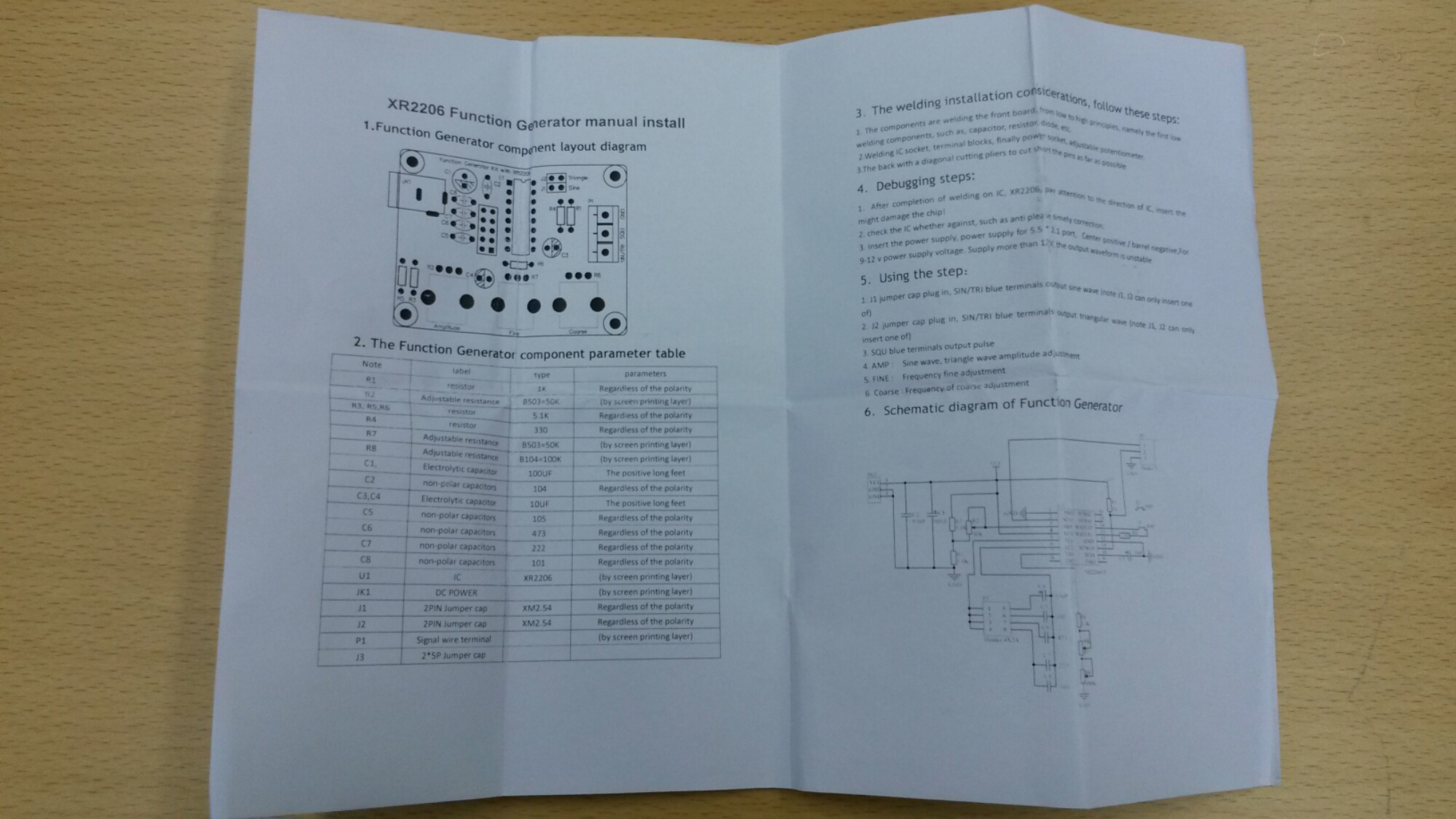

Kit came with instructions that had full circuit diagram.

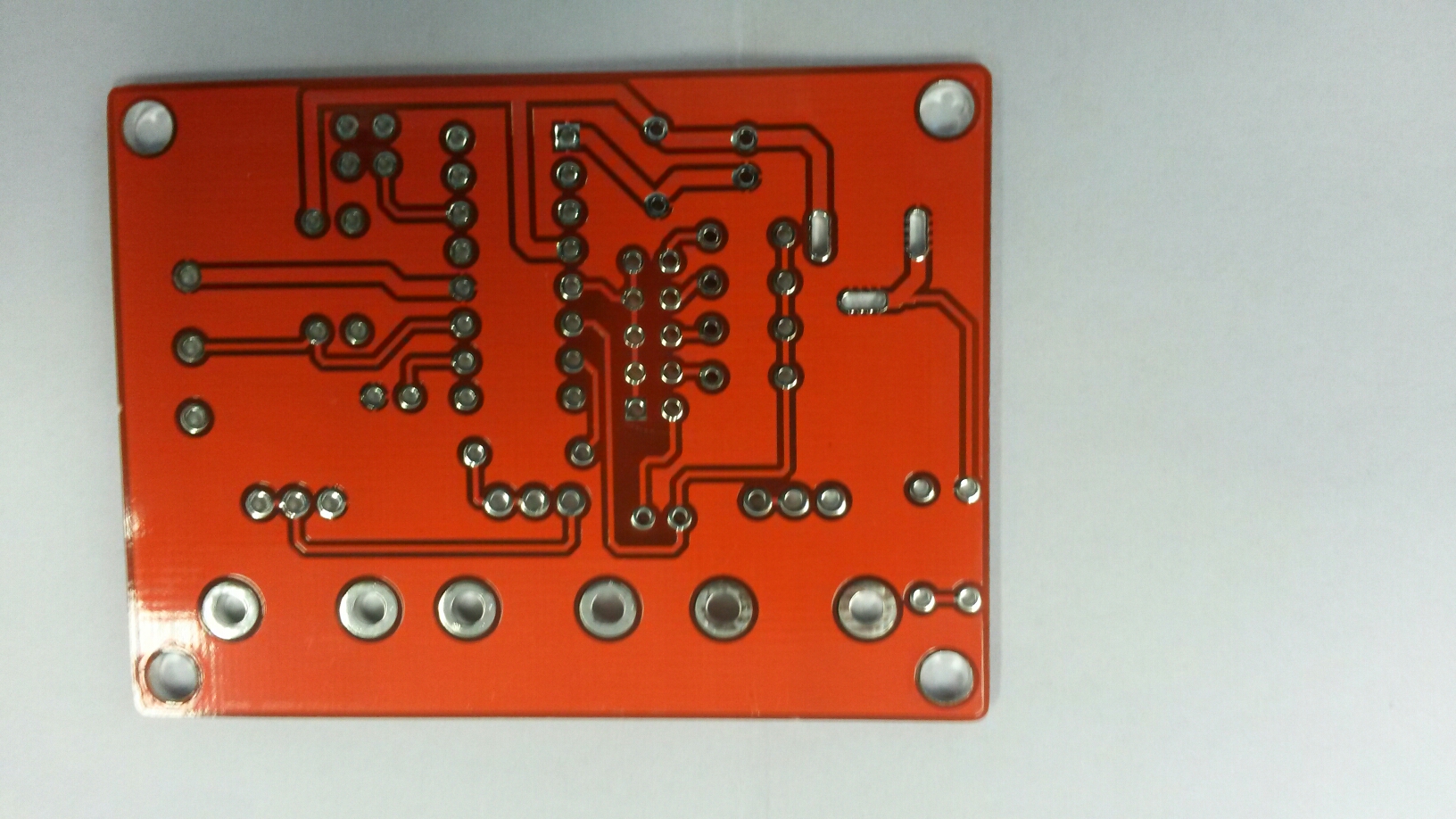

Board seemed to be of decent quality.

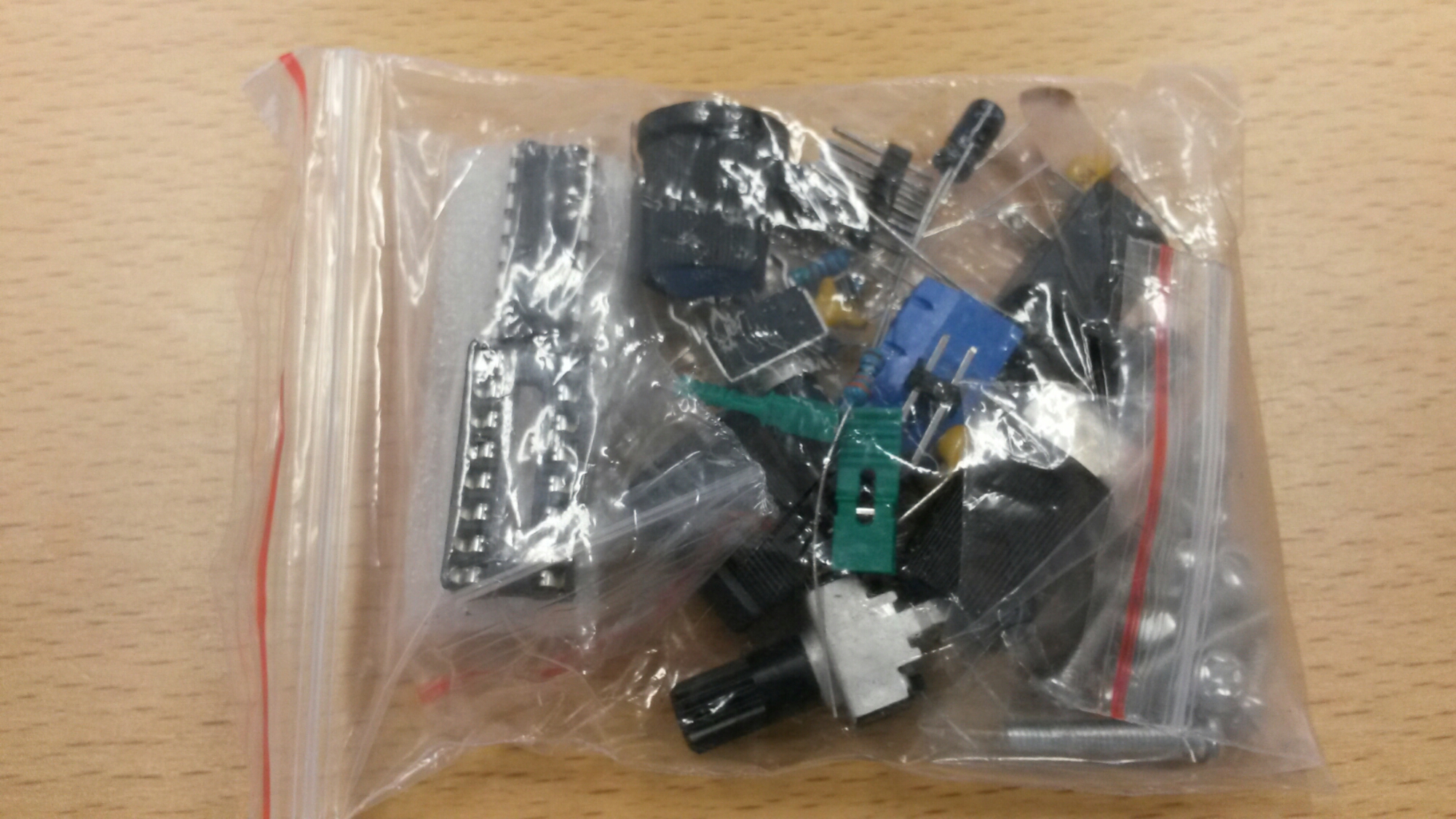

Next task was to add components to the board. The components were in their own plastic bag.

Next task was to built board. It means putting the components to the right places on the board and soldering them. There was some confusion on the instructions over the electrolytic caps (do not go by the photos) the hashed marking is negative corresponding to the negative bar on the cap. After some looking it was clear that the shaded areas of the electrolytic capacitors on the PCB are connected to ground (minus).

The case came in parts that look like they are laser-cut acrylic plastic with protective film.

Next picture shows the ready case. The package has 8 screws, but I only needed half of them:  The four small screws are not needed as the assembled case holds everything tightly.

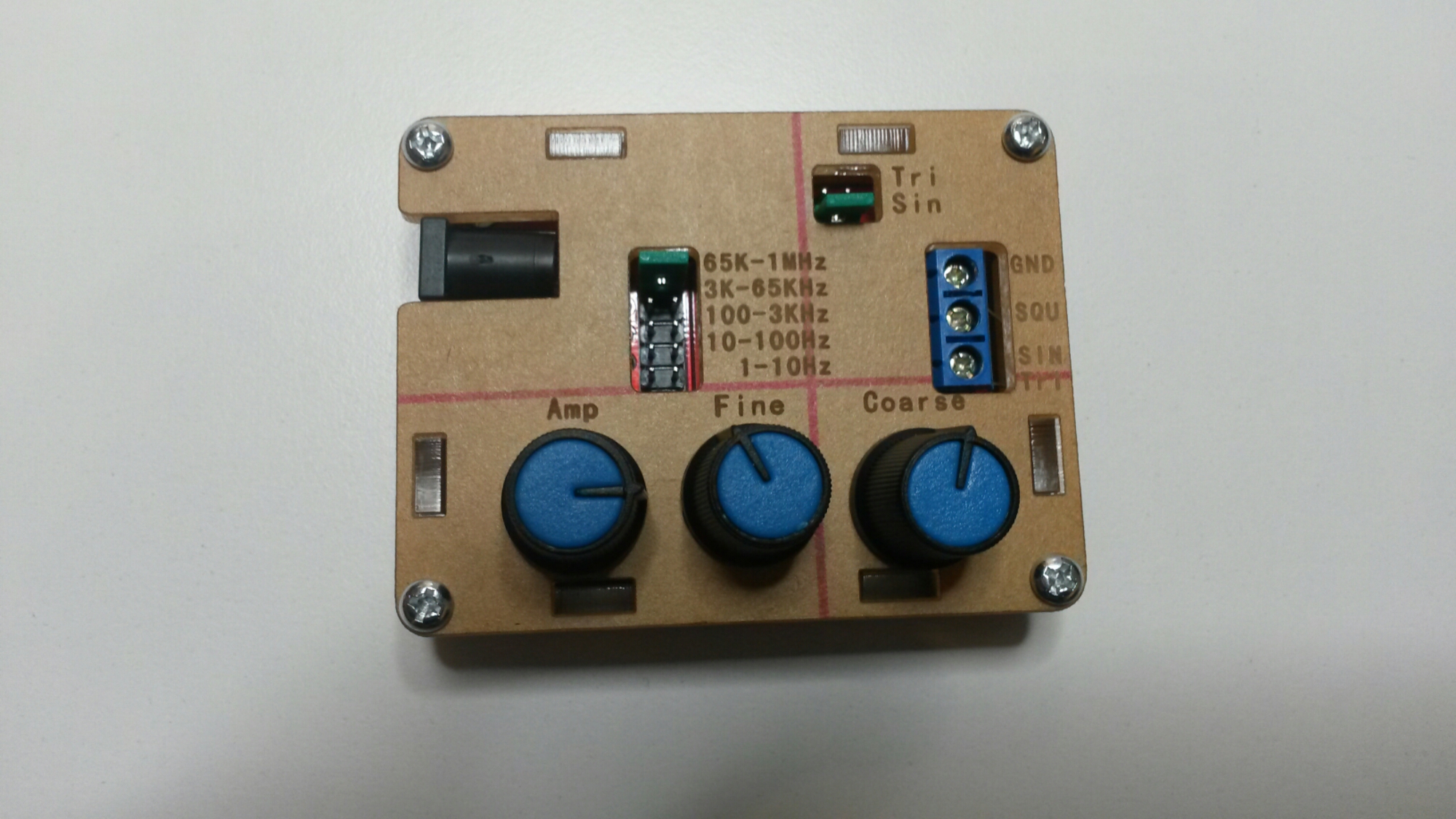

The original case was planned to be transparent acrylic case. The plastic has protective film on both sides of it, that was designed to be removed when building the case. I somehow liked the look of the protective film, and instead left the film in place to get this look.

Nice, small, uncomplicated function signal generator. It is cheap and simple but worth the money.

Can be recommended for soldering practice, learning, and DIY applications. Good addition to a lab.

As mentioned on some product comments, there is instability above 12 volts which I will investigate as the function generator IC should work up to 26 volts by the datasheet.

Works up to 1.2 MHz

Signal (sine wave) can be adjusted from around 0.5Vpp to 4Vpp (higher than that settings distort waveform).

The sine wave signal is a around 4.5V DC potential.

More specifications:

SINE wave:

Amplitude: 0 – 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz – 100kHz

SQUARE wave:

Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)


Amplitude: 0 – 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA


Product link: XR2206 Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ
