HB100 microwave radar to Arduino

A Doppler radar is a specialized radar that uses the Doppler effect to produce velocity data about objects at a distance. It does this by bouncing a microwave signal off a desired target and analyzing how the object’s motion has altered the frequency of the returned signal.

Doppler radar technology used to be expensive, but is not anymore. A cheap cheap HB100 doppler radar module can be bought for few dollars/euros. HB100 outputs signal from  from its IF pin at frequency a the detected Doppler shift. This signal is only a couple microvolts peak-to-peak (because it comes directly from module IF). The Doppler motion sensor I bought only outputs a non-amplified signal of a few micro-volts, whose frequency represents the speed at which an object is moving towards or away from the sensor. For most practical applications that signal needs to be amplified a lot.

To test how this doppler radar works, I bought HB100 Sensor Module 10.525GHz Doppler Radar Motion Detector 40mA For Arduino module:

Type: Microwave Sensor
Chip: HB100
Frequency: 10.525GHz
Voltage: DC 5V±0.25V
Current: 40mA
Size: 38 x 45 x 7 mm (L x W x H)
Application: Automatic door startup, Car, House intrusion alarm, Collision warning, Traffic monitoring

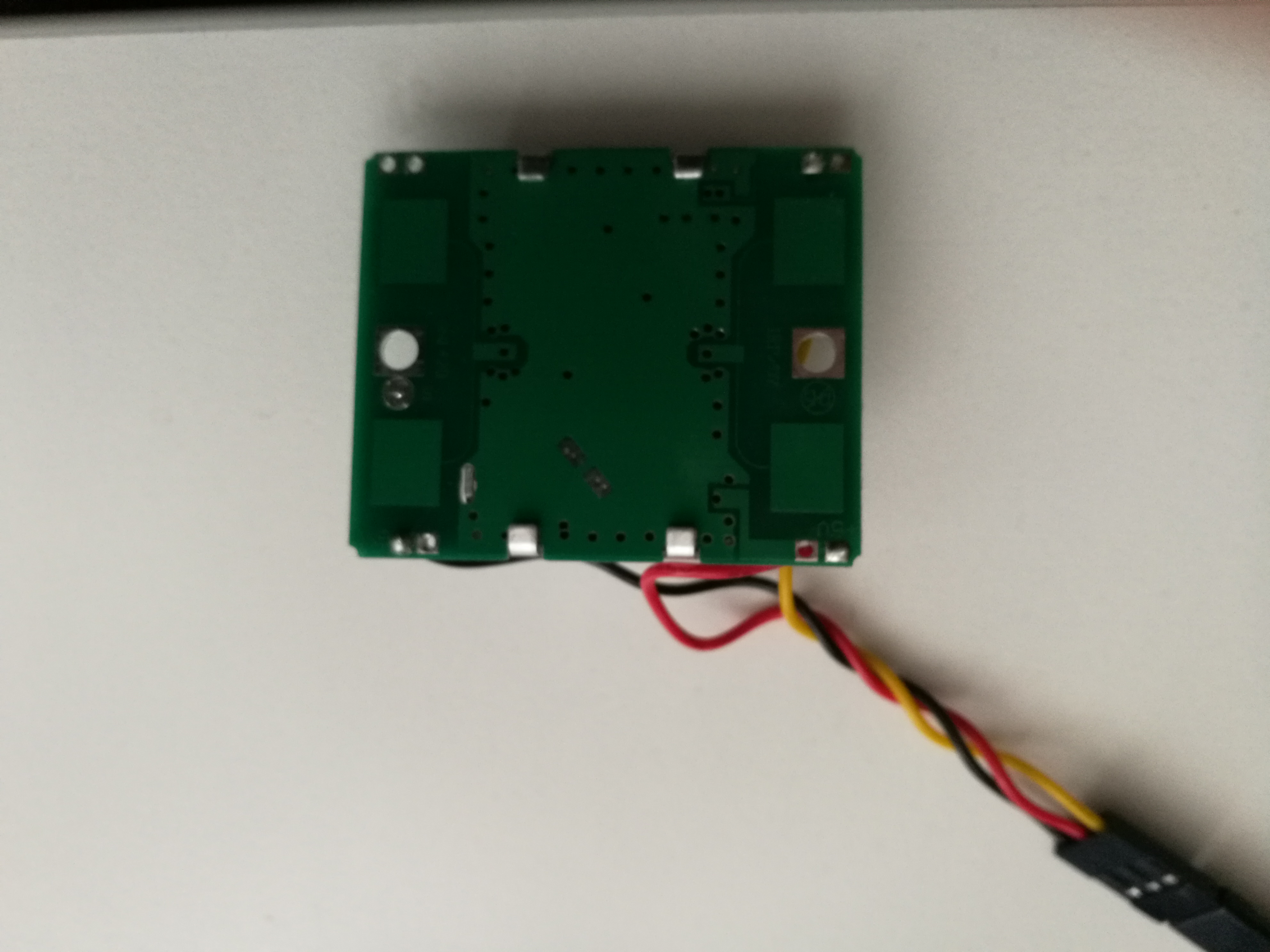

Here is some pictures of the module (taken after I have soldered wires to module). Here is the side where you can see transmitter and receive antennas:

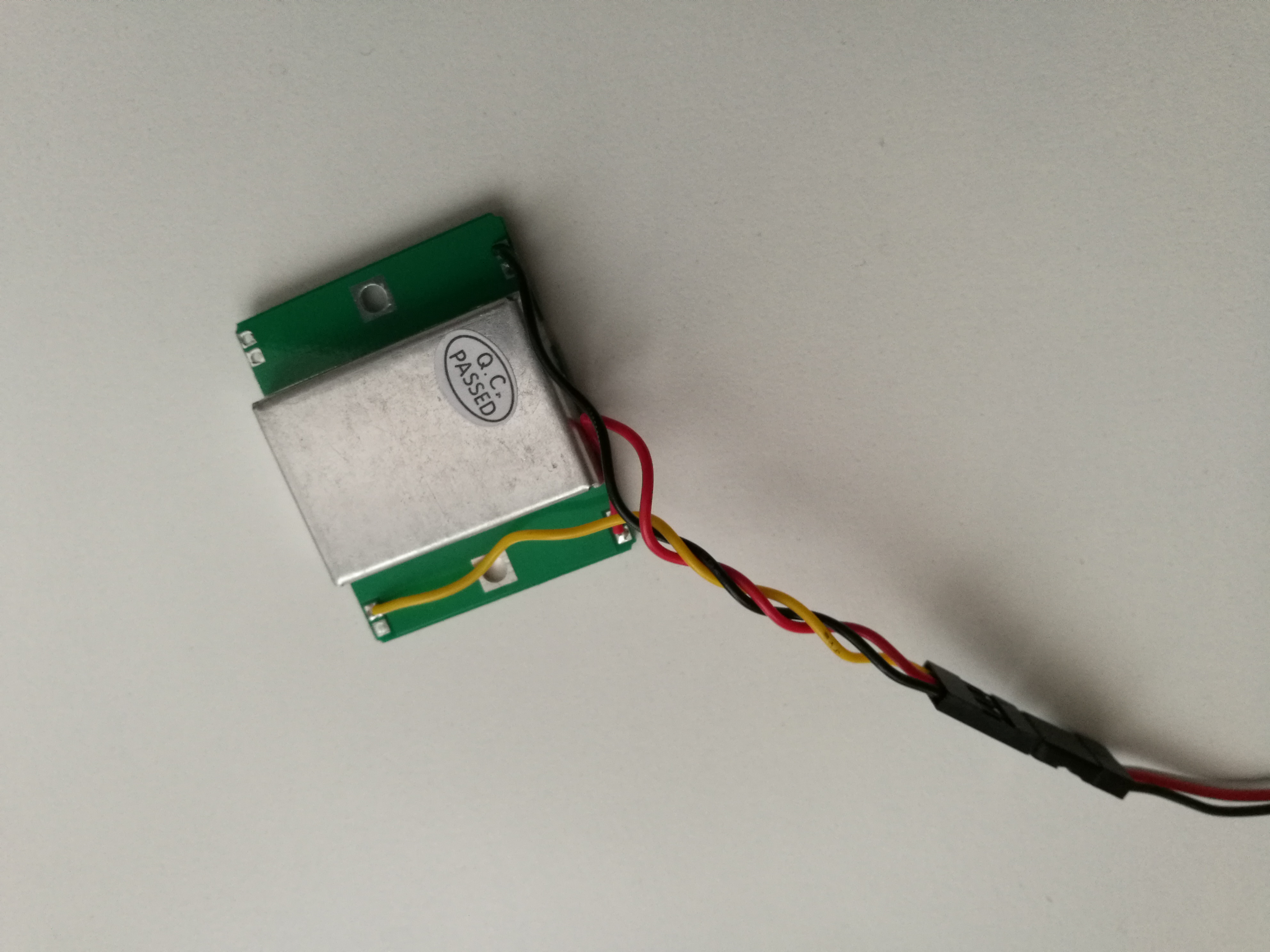

Here is the electronics side where all the interesting parts are encased in metal box:

Here is some technocal data fromhttp://www.theorycircuit.com/hb100-microwave-motion-sensor-interfacing-arduino/

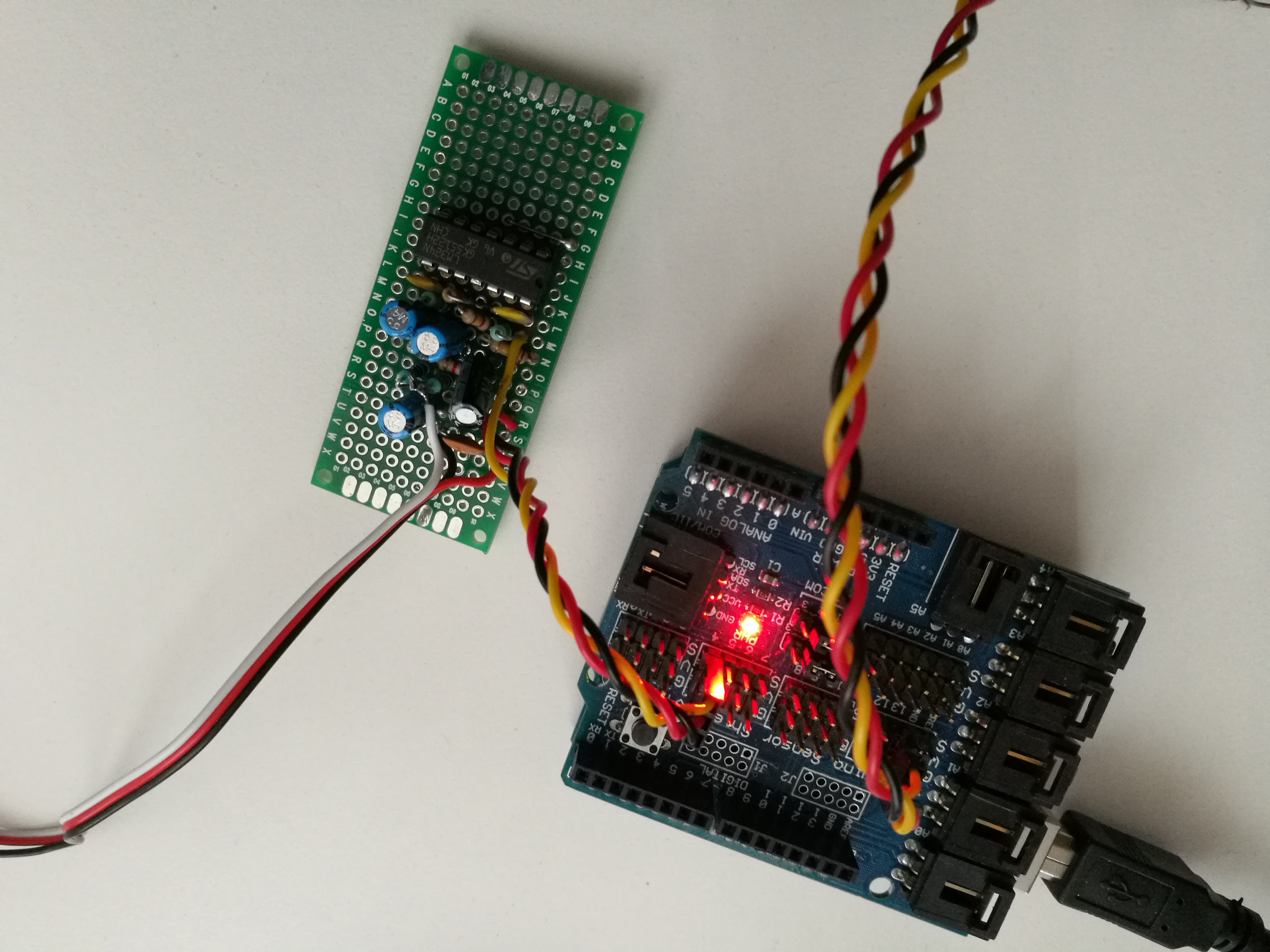

Here is my interfacing circuit to connect this radar module to arduino (amplifier and bandpass filter based on schematic from http://www.theorycircuit.com/hb100-microwave-motion-sensor-interfacing-arduino/ ):

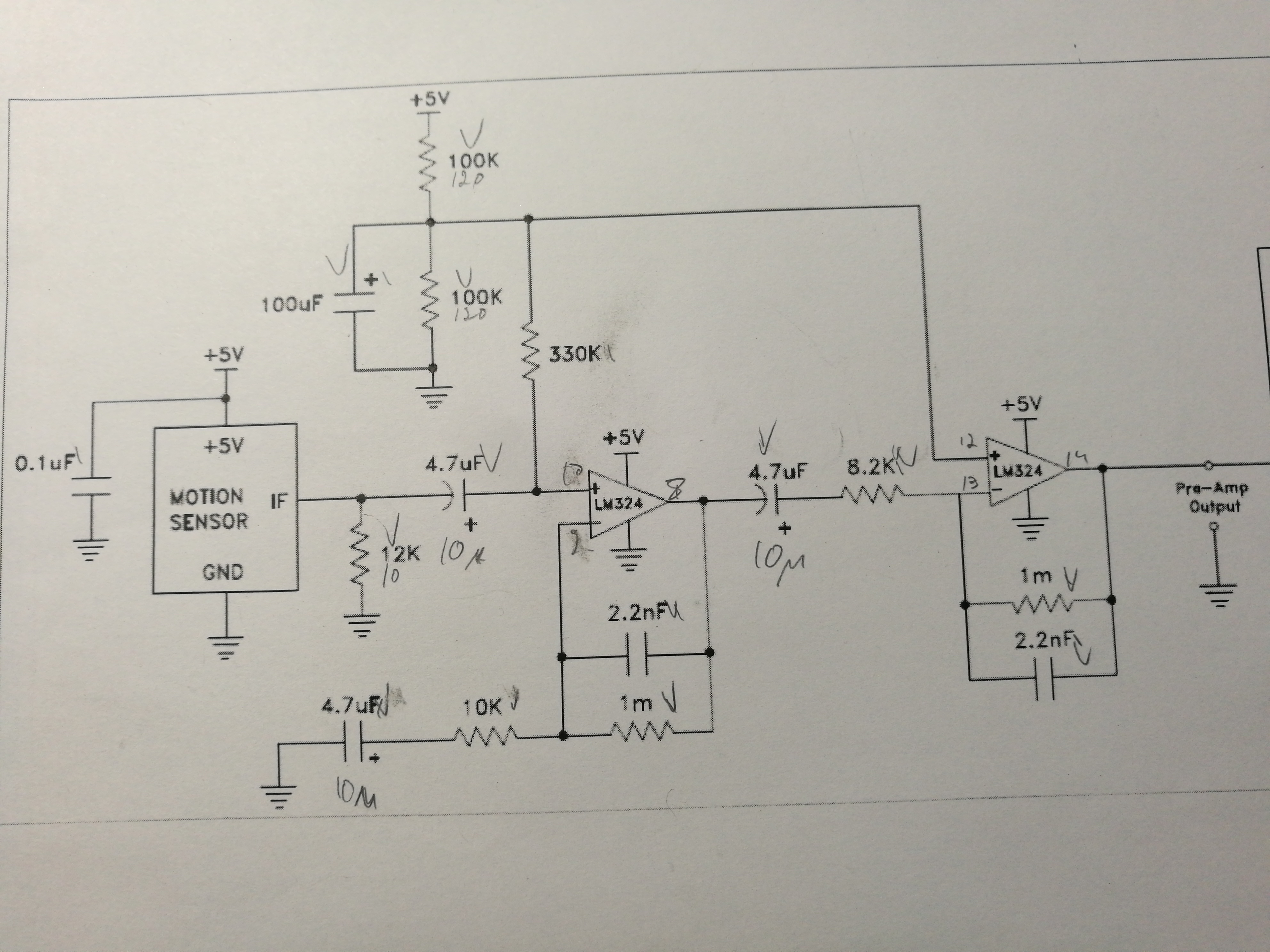

Circuit diagram of what I built. It is modified version of one example circuit I fould (component value changes hand drawn here):


Here is the Arduino code I used (based on code from  http://www.limpkin.fr/index.php?post/2013/08/09/Making-the-electronics-for-a-%247-USD-doppler-motion-sensor ):

// Below: pin number for FOUT
#define PIN_NUMBER 4
// Below: number of samples for averaging
#define AVERAGE 2
// Below: define to use serial output with python script
// from http://www.limpkin.fr/index.php?post/2013/08/09/Making-the-electronics-for-a-%247-USD-doppler-motion-sensor
unsigned int doppler_div = 19;
unsigned int samples[AVERAGE];
unsigned int x;

void setup() {

void loop() {
unsigned int pulse_length = 0;
for (x = 0; x < AVERAGE; x++)
pulse_length = pulseIn(PIN_NUMBER, HIGH);
pulse_length += pulseIn(PIN_NUMBER, LOW);
samples[x] = pulse_length;

// Check for consistency
bool samples_ok = true;
unsigned int nbPulsesTime = samples[0];
for (x = 1; x < AVERAGE; x++)
nbPulsesTime += samples[x];
if ((samples[x] > samples[0] * 2) || (samples[x] < samples[0] / 2))
samples_ok = false;

if (samples_ok)
unsigned int Ttime = nbPulsesTime / AVERAGE;
unsigned int Freq = 1000000 / Ttime;

Serial.print(“Hz : “);

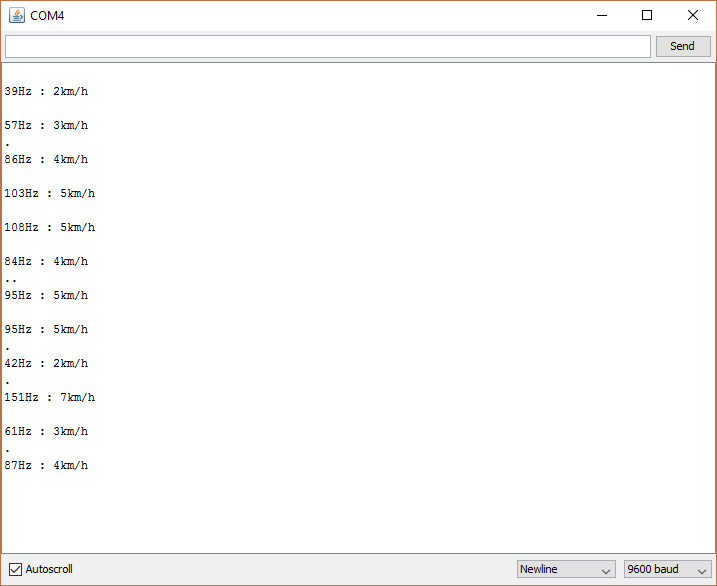

Here is example output the Arduino sends to serial port:



Links to more material:

HB100 module I used





Datasheet of the module: https://www.openimpulse.com/blog/wp-content/uploads/wpsc/downloadables/HB100_Microwave_Sensor_Application_Note.pdf

Making the electronics for a $7 USD doppler motion sensor



Microwave Doppler X-Band Radar Sensor Wireless Module Motion Speed

Microwave Motion Sensors for Fun and Profit (HB100 and Arduino)

Making the electronics for a Doppler motion sensor






HB100 Microwave Motion Sensor – An Introduction

Breakout board uses HB100 doppler motion sensor

HB100 Doppler Speed Sensor – Arduino Compatible

A quick test of the HB100 doppler radar module.

HB100_test – A quick test of the cheap HB100 doppler radar module.

Datasheet of the module: https://www.openimpulse.com/blog/wp-content/uploads/wpsc/downloadables/HB100_Microwave_Sensor_Application_Note.pdf

Get On 10 GHz For 3 Euros
