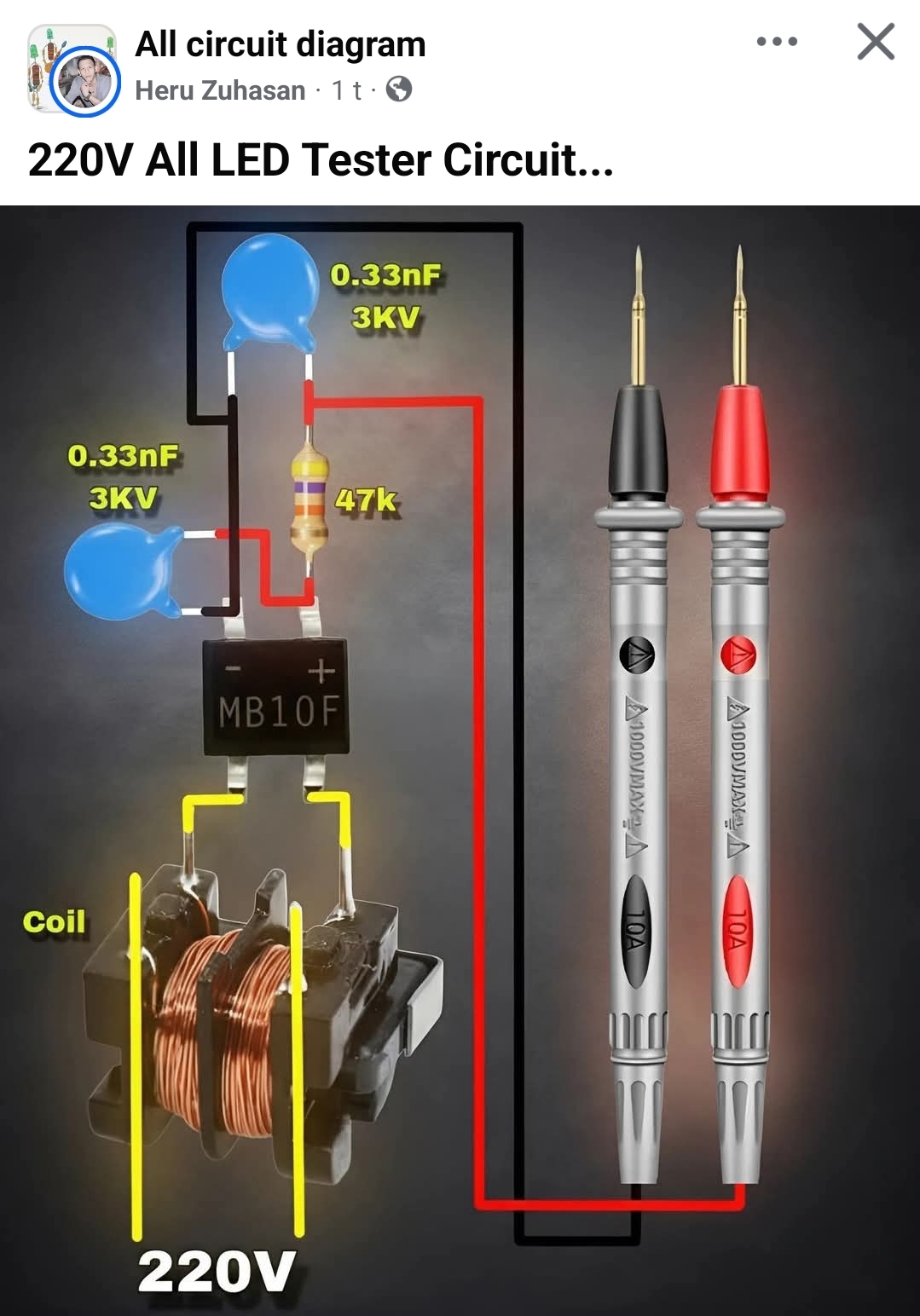

Circuit source: https://www.facebook.com/share/p/1HGut3uEAd/
This is a bad and dangerous design
This is a dangerous design. There is potentially lethal voltage on those probe pins. ⚡️☠️
I strongly discourage to build this.
Design problems
- no isolation from mains – test probes and circuit being tested dangerous to touch
- pointless filter coil in output
- open circuit voltage can be over 300V
- output capacitor in circuit directly on probes – high current surge when you connect probe can potentially damage LED being tested
