Audio Visual 2017

Views from Audio Visual 2017 fair in Helsinki Finland.

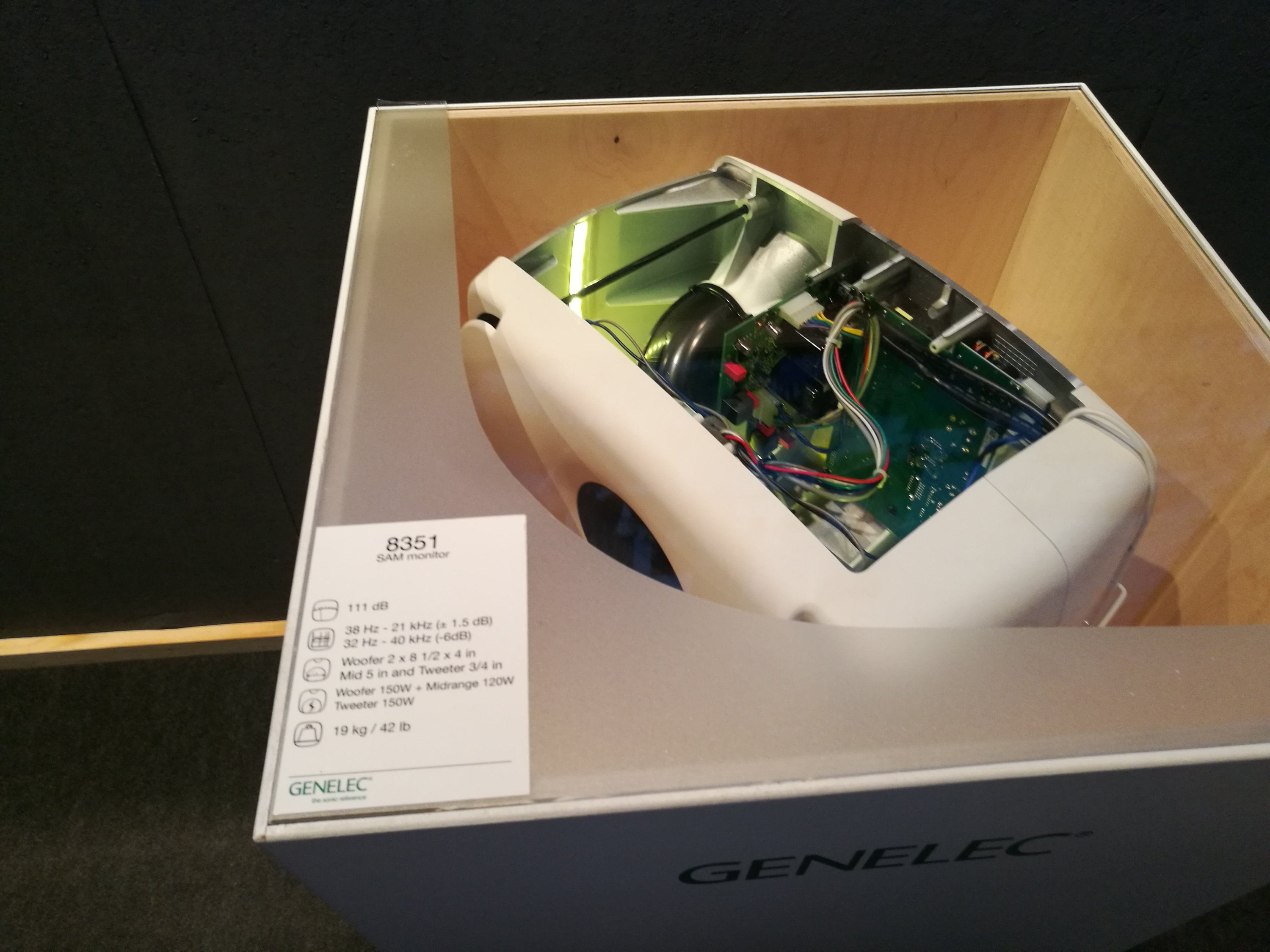

Inside view to Genelec speakers

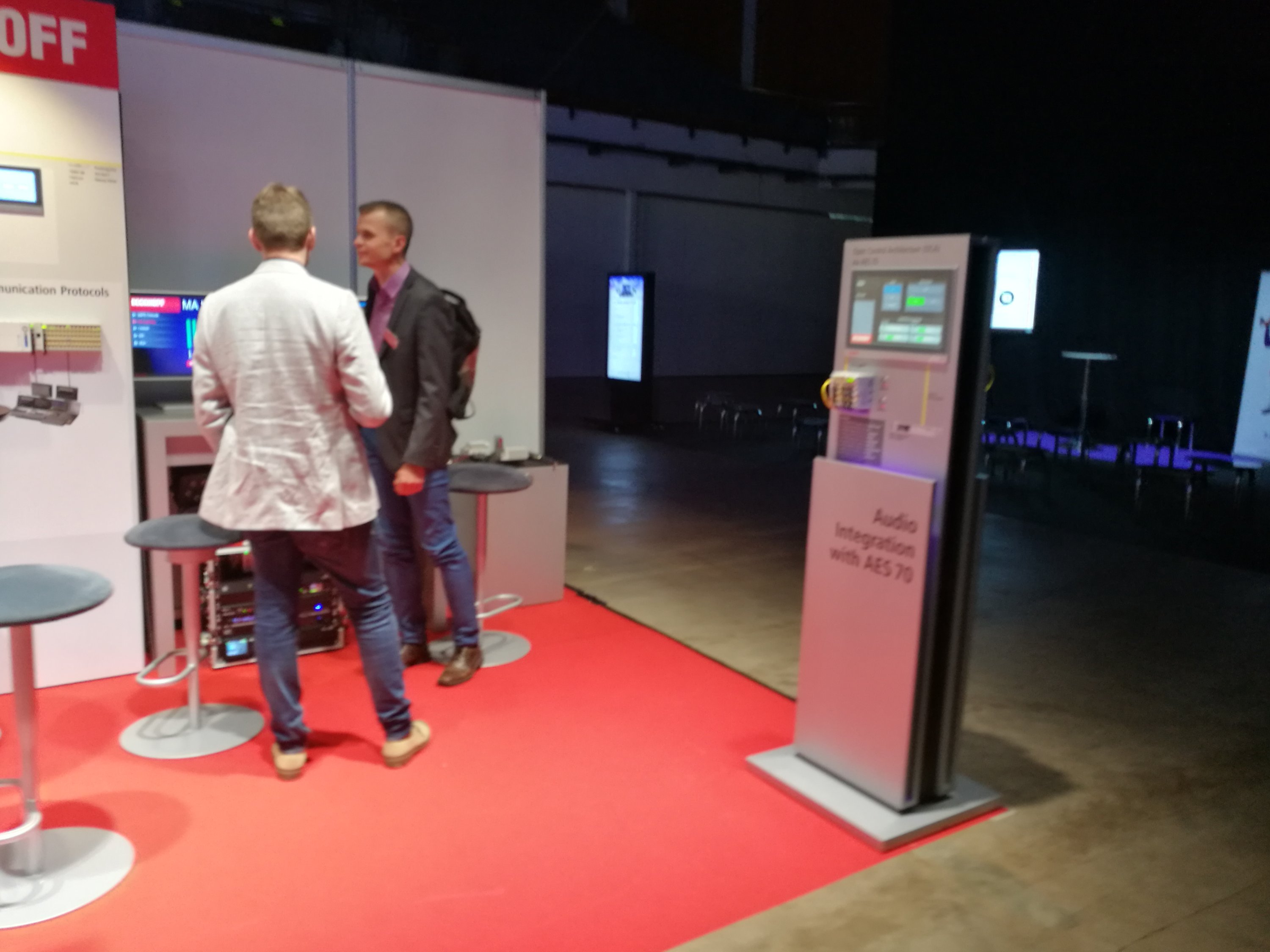

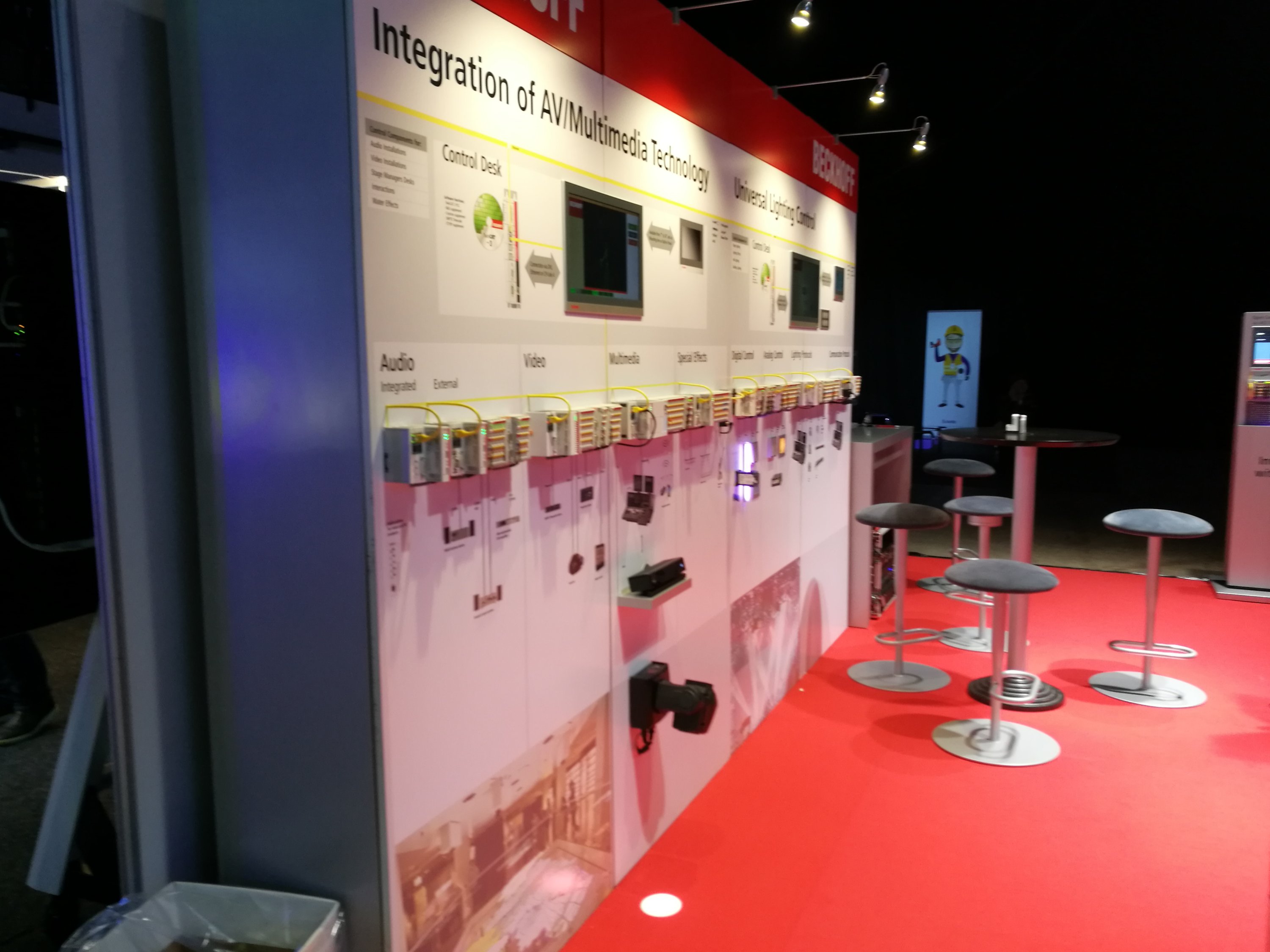

Beckhoff and AES 70

Several audio ethernet protocols in use

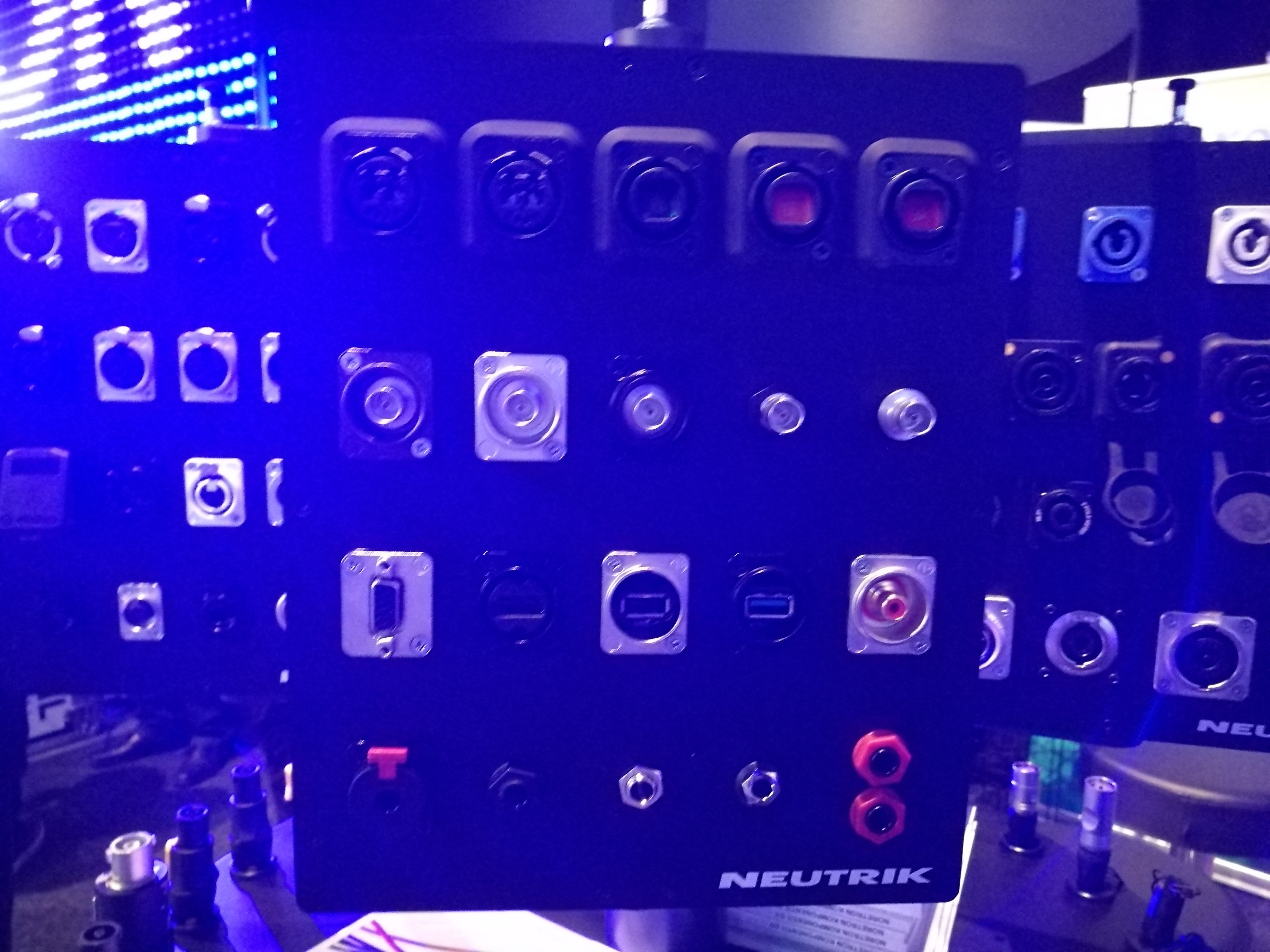

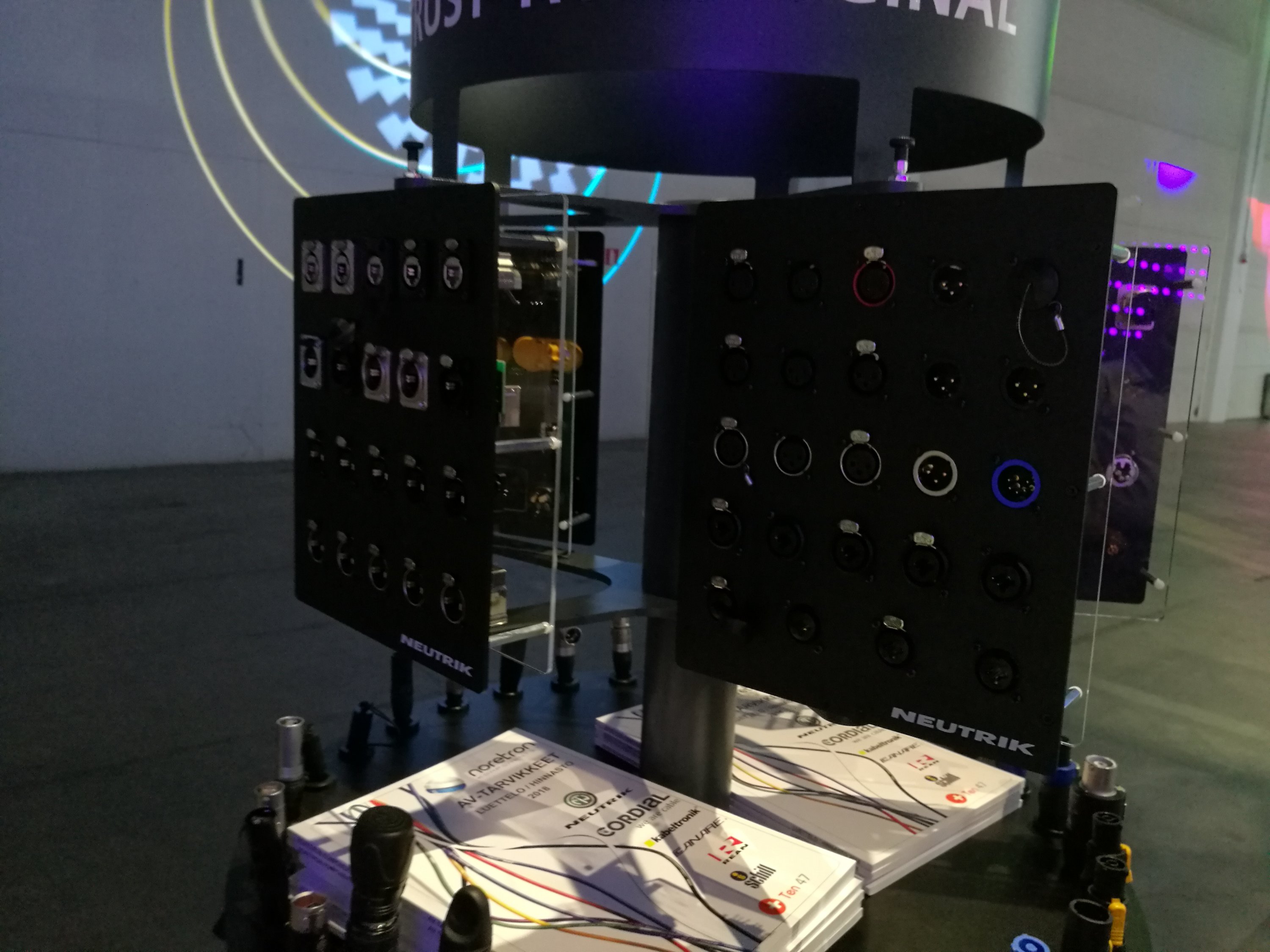

Connectors from Neutrik


  1. Tomi Engdahl says:

    AES Standard
    AES70-1-2015: AES standard for audio applications of networks – Open Control Architecture – Part 1: Framework

    AES70 – What Is It?

    AES67 set the Audio over IP world buzzing in 2015. If you’re not sure what it is then read my primer on the subject. In that primer I explained that AES67 is a way to send audio between incompatible AoIP networks. It is a transport protocol and part of its appeal is that it is deliberately limited in scope. It doesn’t try to replace AoIP protocols, it makes them more useful by allowing them to stream audio to one another, forming a bridge between incompatible networks.

    Originally proposed by the OCA Alliance, in January 2016 the AES published AES70, a complementary standard to AES67, which supplements the audio transport of AES67 with a protocol for device control. Rather than just allowing audio streams created and controlled in host networks to be routed to and “piped out” of that network via AES67, AES70 allows the control and monitoring of all parameters of a network device including the creation and deletion of signal paths, access control, control of processing and even firmware updates. This control data can be delivered over wired ethernet or WiFi.

    AES70 can be used with not just AES67, but all the other AoIP systems as well. AES70 doesn’t provide a means of transporting audio, that can be achieved using a host network like Dante, AVB or Ravenna. It can of course be used with AES67, or any of the other transport protocols such as Dante or Ravenna, providing as it does the missing features needed to turn the transport protocol of AES67 into a complete Audio over IP solution. AES70 isn’t just designed to complement AES67.

  2. Tomi Engdahl says:

    Building a Monster Floodlight out of Scrap

    When the apocalypse comes, we want [Justin] on our team! He made a hefty 400 W work light out of four 100 W LEDs mounted to a giant, aluminum slab-like heat sink he had lying around. He manufactured a diffuser for the LEDs by cutting down what appeared to be a old broken fluorescent light fixture’s cover, with side plates bolted into place for good measure. [Justin] does a lot of metalwork in his projects, and you can see it the precision with which he bolts the various parts together into a rather slick assembly.

    The LEDs run off 110 V

    400 Watt LED worklight

    I built this mostly from scrap I had around the shop. Along with four 100W 110v LED modules from China. Total cost, about $30. Well, I probably payed more than that for the RAM Mount years ago, but never used it.

  3. Tomi Engdahl says:

    How to Replace / Convert a Halogen Floodlight with an LED Chip

    In this video i will show you how to convert the old Halogen Floodlight, which consumes a lot of current, into a Floodlight Led using the LED Lamp Chip 50w
