Mains LED waveform

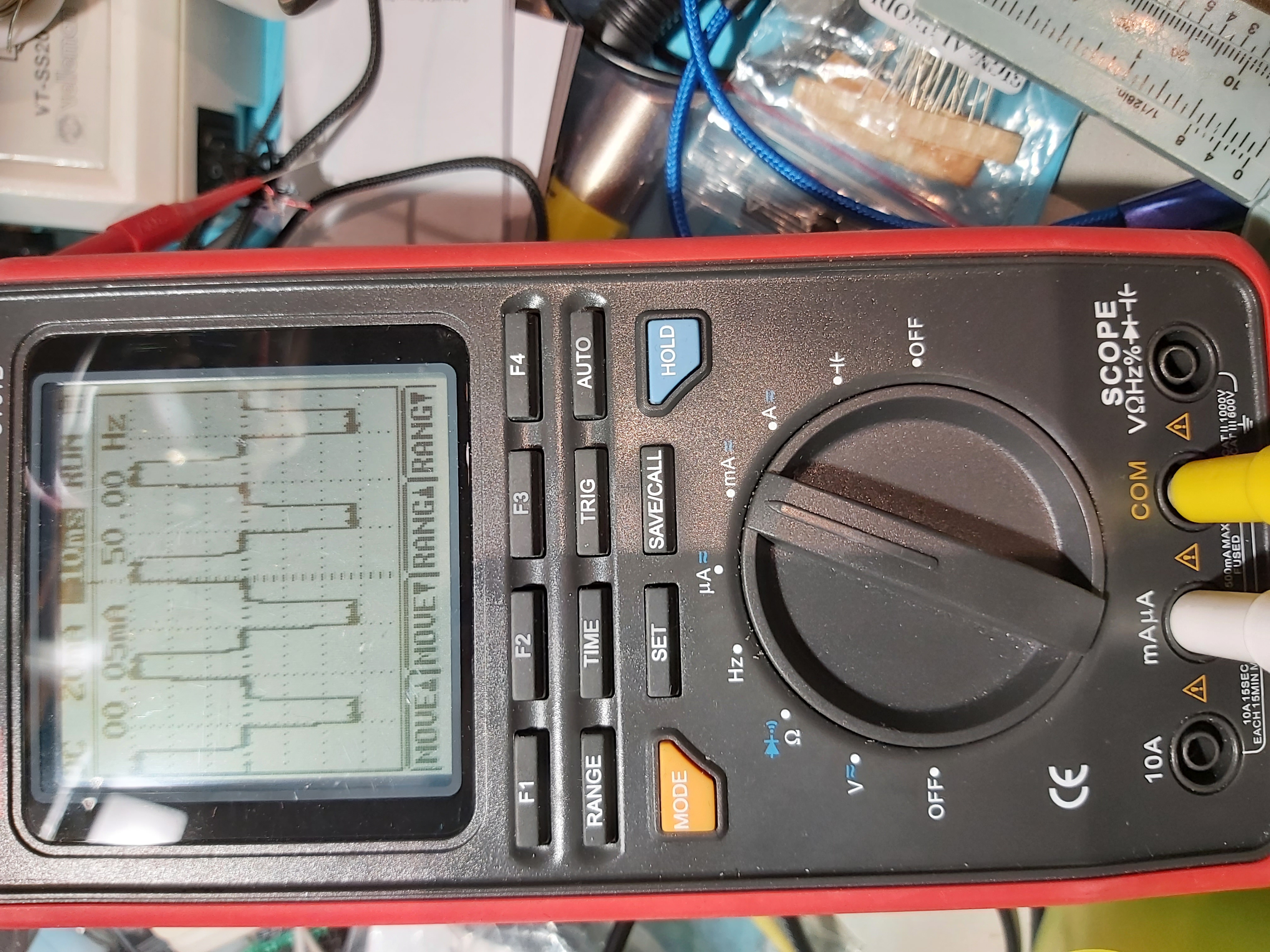

I saw a quite interesting looking waveform from a 10W LED floodlight powered from 230V AC.

20211027_211930

It looks like when AC voltage waveform instantaneous voltage lower than some voltage, it takes practucally no current and above it it looks like a constant current load.

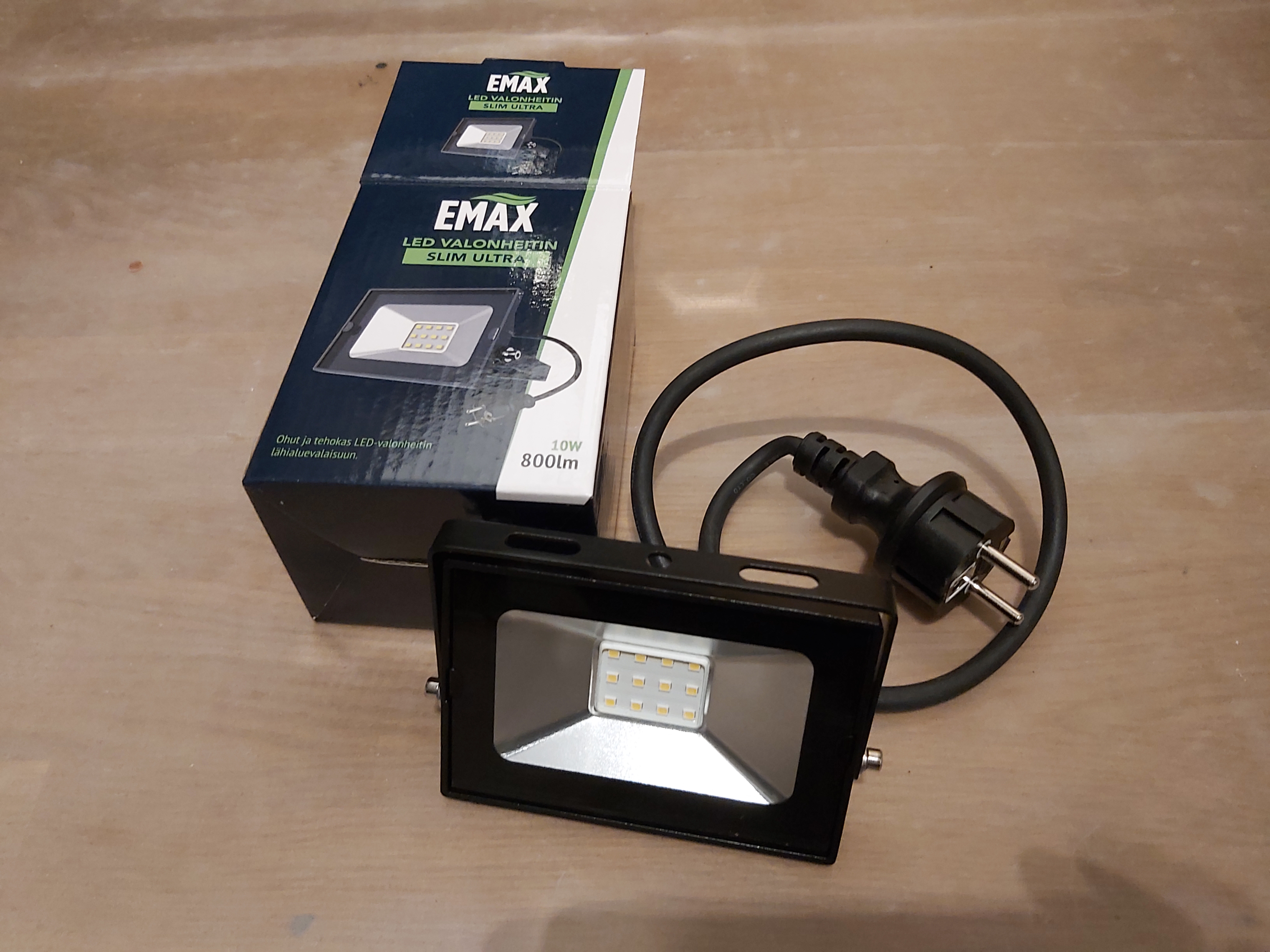

This is picture of the light.

20211104_204343

This looks like this uses one of those direct mains AC powered LED modules, like those described in detail here: https://hackaday.com/2019/02/15/cob-led-teardown/
