PowerCON connector

The powerCON is an electrical connector manufactured by Neutrik for connecting mains power to equipment in a small space (smaller than IEC connector commonly used on PCs).

Neutrik powerCON 20 A is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It is a rugged solution that has a locking device in it. It is suitable for applications where a reliable power connection is needed (no loose wire accidentally pulled out of device). Neutrik powerCON 20 A is most commonly used for entertainment system power distribution (for example lighting equipment)

Powercon looks and works similarly to the Speakon: the line connector inserted in the chassis connector and twisted to make contact and lock. Both line and chassis connectors are fully insulated even when disconnected.

The original and most common version of the powerCON is rated at 20 A. It comes in two deliberately incompatible variants (one for power input and other for power output) .The type A is blue and used for power sources (power flows out of a blue-ended cable, into a chassis socket).

The main advantages of the powerCON are high current capacity in a small space and locking. The main disadvantages are cost and reliance on a single vendor. Biggest electrical disadvantage is that powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live! That unfortunately makes them  unsuitable for equipment used by untrained personnel.

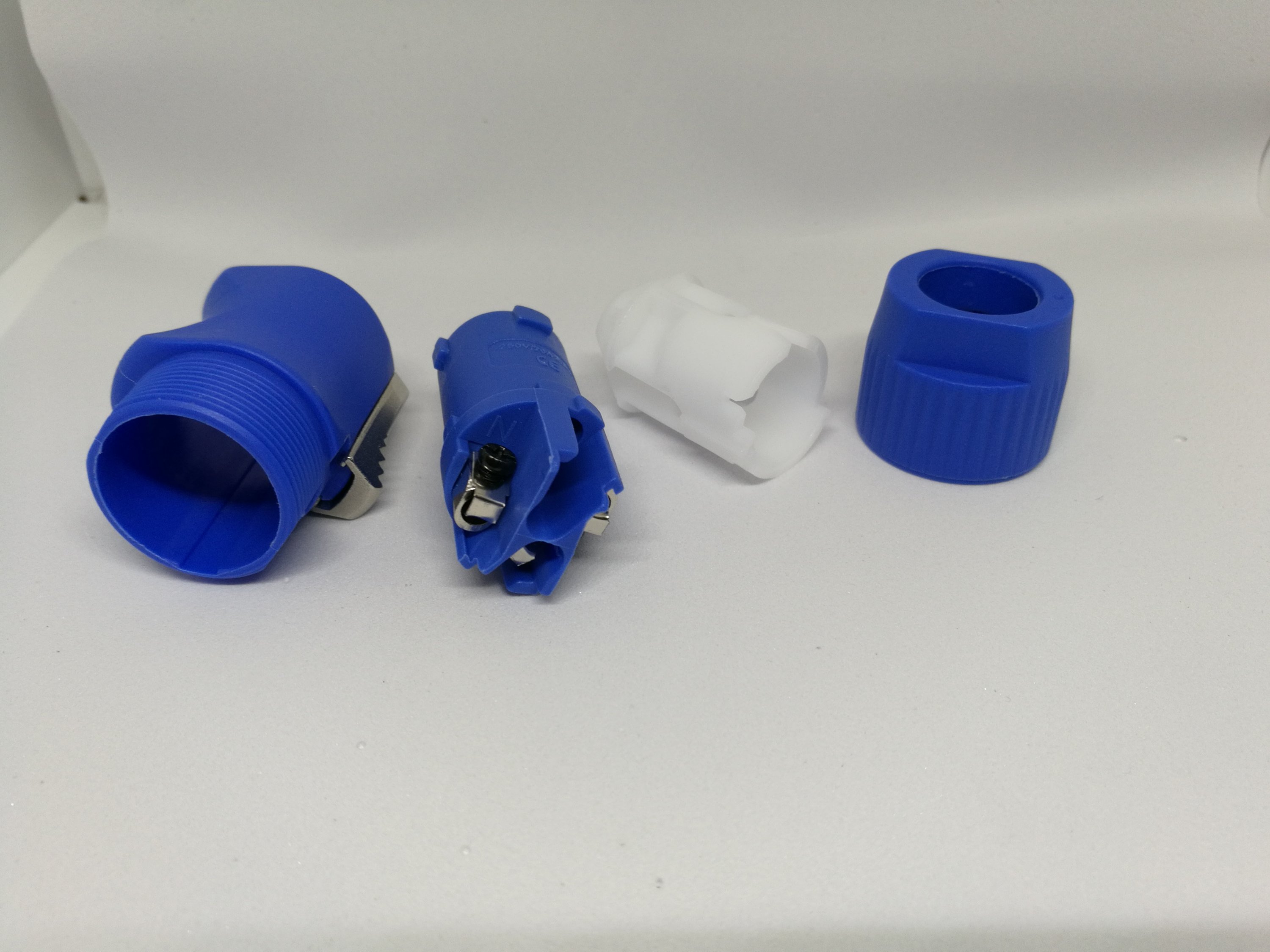

Hare is a powerCON connector I found from Chinese outlet. It seems that we might not be anymore tied to one manufacturer….



It seems that There are lots of non-Neutrik PowerCon connectors, most of which are made in China. While there is some question regarding patent violations, lots of off shore manufacturers make their verison of the PowerCon and also equip sound and lighting products with non-Neutrik versions of the PowerCon. There are ways to spot a counterfeit – and mine looks like one.

Neutrik fights against piracy of products and trademark infringement. Although Neutrik AG is unable to track down and stop all violations of product (patent and trademark infringements), company thinks that it remains an important task on the company’s agenda.

Related connectors

In addition to original powerCON (nowdays known as powerCON 20 A), there are also other connectors nowadays on powerCON product family. Neutrik has introduced a larger 32 A version of the powerCON.

Neutrik announced a new variant of the connector called the powerCON TRUE1.Unlike the traditional PowerCon connectors the new powerCON TRUE 1 connector is specified for disconnection under load. The current rating for it is 16 A and connectors are IP65 rated when mated. powerCON TRUE 1 connector is not compatible with traditional PowerCon connectors.

13 Comments

  1. Tomi Engdahl says:

    Fake Neutrik Powercon. August 2015
    https://www.aceta.org.au/fake-product.html

    The plug breaks if you twist it the wrong way to lock it in place or keep turning once it’s locked. Not much pressure is needed to break it either.

    Reply
  2. Tomi Engdahl says:

    Converting a Surge Protector / Power Strip to Neutrik PowerCON TRUE1 for Daisychainability
    https://www.youtube.com/watch?v=lZkdYEErVV8

    A guide to adding a Neutrik PowerCON TRUE1 panel connector to a Furman SS-6B power strip to allow daisy-chaining of multiple strips.

    Reply
  3. Tomi Engdahl says:

    Neutrik’s powerCON Explained – ISE Show 2016
    https://www.youtube.com/watch?v=riy85f8Qov4

    Neutrik’s powerCON series includes lockable, extremely robust and reliable 3 pole equipment (AC) connectors.

    Neutrik PowerCON TRUE1 – How to install male and female cable connectors
    https://www.youtube.com/watch?v=01AnhcF47D4

    A helpful guide for installing male and female Neutrik PowerCON TRUE1 electrical connectors onto a cable.

    Reply
  4. Tomi Engdahl says:

    What is Speakon and Powercon Connector in Professional Audio Apllications
    https://www.youtube.com/watch?v=bnE6vJdGFaI

    Used in Professional audio system for connecting speaker to the audio amplifier. MX Speakon connector is designed with a locking system.

    MX Speakon connectors are fully shielded from human touch, preventing electrical shock risks.
    Operate in high current, inductive load environment of loudspeakers.

    The MX powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

    Reply
  5. Tomi Engdahl says:

    https://forum.speakerplans.com/powercon-problems_topic93549.html

    If you are hot plugging them you are going to have massive issues, and TBH you deserve massive issues, they are clearly marketed as not hot-pluggable and using them to make or break load is moronic.

    If you tried that with a 315A camlok you would need new eyebrows…

    We know that this type of connector has no breaking capability neither power-on during load.

    Your are 100% sure they are Neutrik Powercon, not “another” make?

    “Ive found both can suffer from charing on the contacts from being plugged and un plugged when live”

    The data sheet on the blue ones I bought said they are not rated for a live line disconnect.

    Treat them with De-Oxit when new, no live disconnect, and they should last indefinitely (as mine have for four years).

    Reply
  6. Tomi Engdahl says:

    Topic: Powercon connectors: Breaking capacity?
    https://forums.prosoundweb.com/index.php?topic=149840.0

    In looking at Neutrik’s information for a 20A connector, which looks like what we need…

    Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

    I think I know what this means, but what does it *actually* mean? Can the electricity be on (from the outlet) when plugging the Powercon into a speaker? Should the speaker cabinet be powered off during any time of a Powercon insertion/removal (we’re thinking this is the best approach).

    You don’t want the circuit energized and the equipment switched on, or eventually the contacts in the PowerCon will fail. Simply having the circuit energized is OK, since it’s the current being broken that causes the arcing that damages the contacts. I suspect the word “live” is in there just to make absolutely sure there is no chance of current flowing.

    I’m not religious about turning the device off before making/breaking the connection unless there’s a significant load – then I will make sure the load is off. A rule of thumb is that if the Edison plug arcs when you plug it (or unplug it) into the receptacle, that load should be turned off before making or breaking the connection, otherwise that arc will happen inside the Powercon, an degrade the connectors, as Geoff mentioned.

    its rated for 20 amps of electricity flowing through it when connected.

    If memory serves its something small like 1 or 2 amps will burn the contacts off if you keep plugging stuff in with power switches turned on

    the powercon true 1 is rated for 16 amps as a disconnect. I believe its their attempt to replace edison and twistloc plugs.

    Reply
  7. Tomi Engdahl says:

    Safety Note
    Neutrik Includes This Safety Instruction With All PowerCon Connectors
    https://powerconcables.com/safety-note/

    The Powercon system is certified as not having breaking capacity. This term (without breaking capacity) refers to components which in normal use should not be engaged (connected) or disengaged (disconnected) under load or live.

    In other words, the device being powered with the PowerCon cable should be in the “off” mode when the connection is made.

    The inserting or removing of a PowerCon connector is not a replacement for an on/off switch. Using them in this manner can cause arcing at the terminals which can damage the contacts and possibly cause sparking or excessive heat.

    Non-Breaking Capacity? Here’s How To Disconnect A Powercon-Equipped Device
    https://powerconcables.com/non-breaking-capacity-heres-how-to-disconnect-a-powercon-equipped-device/

    The output version of Powercon connectors are considered “non breaking”, meaning that you should not disconnect (or connect) a piece of equipment with a Powercon while it is in the “on” mode.

    In order to correctly power down a device that is not equipped with an on/off switch, you should first disconnect from the power source (unless that end of the cable is also equipped with a Powercon. If both ends of the cable are Powercon equipped, the correct procedure is to shut down the power source before disconnecting the device.

    Reply
